Volumetric Valve

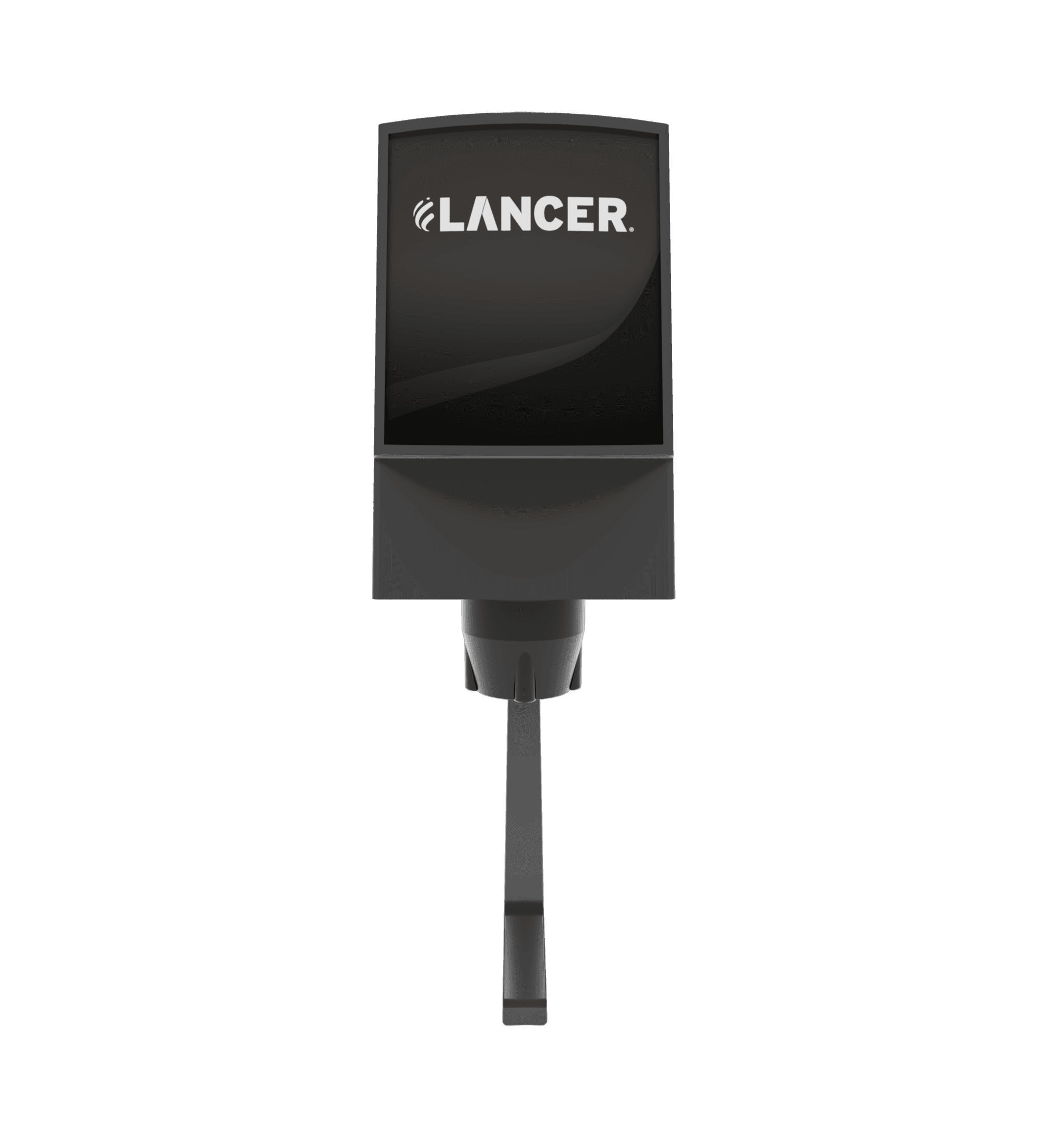

The Lancer Volumetric Valve is engineered to deliver exceptional beverage consistency in demanding dispensing environments. Utilizing dynamic, real-time electronic metering, it continuously monitors and adjusts flow rates to maintain precise syrup-to-water ratios, even during periods of significant pressure fluctuation.

Request A Quote

Download App

SPECIFICATIONS

↓

Equipment Warranty

Flow Metering

The LVV utilizes real-time microprocessor feedback and flowmeter/paddle-wheel technology to actively correct syrup injection 7 to 8 times per second. This supports a much wider range of real-time pressure fluctuations.

Easy Setup and Calibration

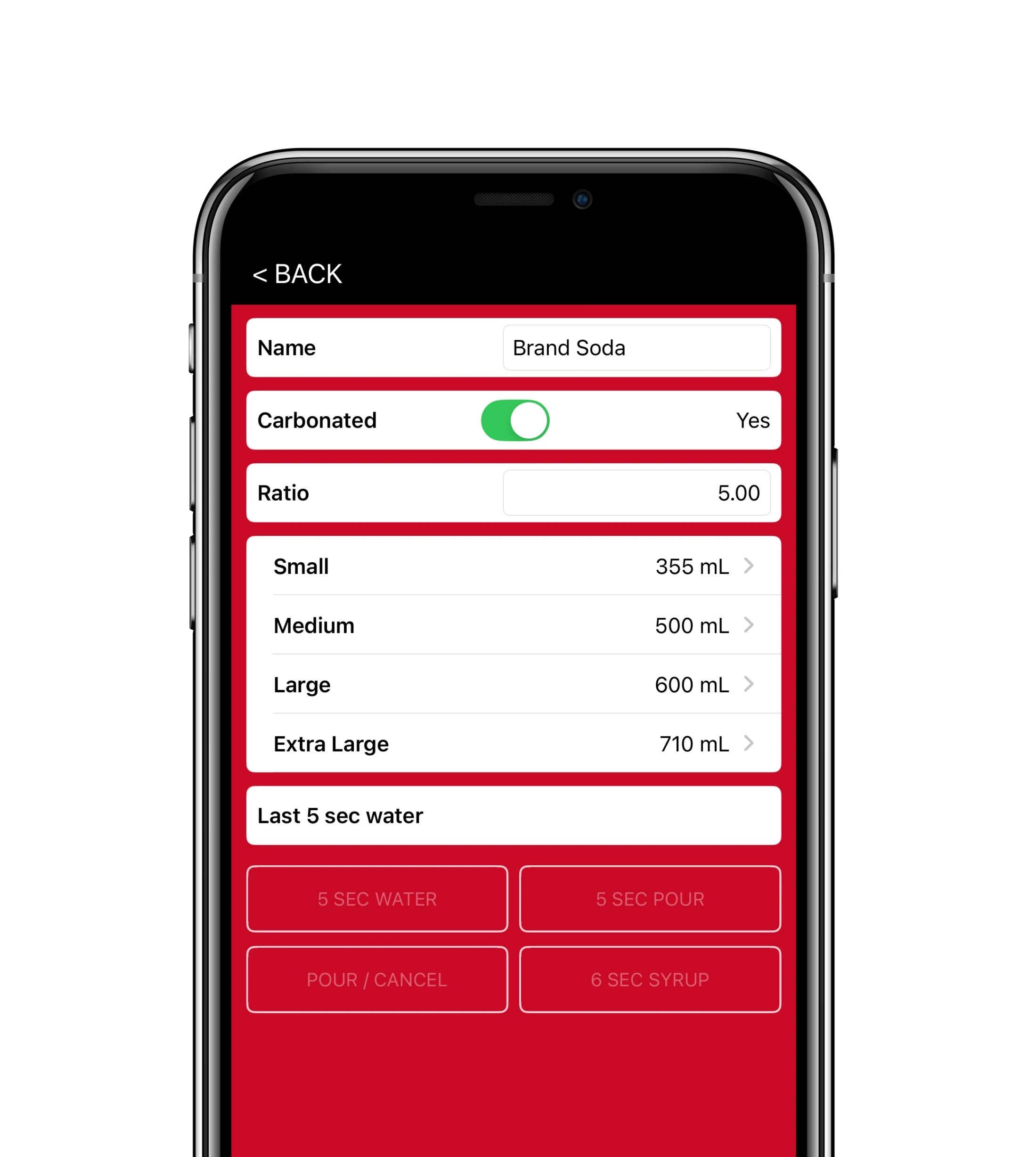

Access valve settings through a dedicated Bluetooth mobile application while helping prevent unauthorized adjustments. Configure, test, and calibrate the valve directly from the Bluetooth app, streamlining installation and service procedures.

Specifications

Flowing Pressure Water
40 - 110 psig (2.8 - 7.7 bar)
Syrup (Sugar): 20 - 70 psig (1.4 - 4.9 bar)
Syrup (Diet/Light): 10 - 70 psig (0.7 - 4.9 bar)

Electrical
24V, 50/60 Hz

Mounting
Uses LEV® Mounting Block

Available in the following valve timings:
• 3.0 oz/s (90 ml/s) Grey flow restrictor assembly
• 2.3 oz/s (68 ml/s) White flow restrictor assembly
• 1.25 oz/s (45 ml/s) Red flow restrictor assembly Available with front water or soda push button

Features

Real-Time Electronic Flow Metering
Continuously monitors and adjusts syrup injection rates with 7-8 corrective checks per second for exceptional ratio accuracy.

Microprocessor-Controlled Precision
Advanced microprocessor feedback combined with flowmeter and paddle-wheel technology actively compensates for changing operating conditions in real time.

Enhanced Ratio Performance
Supports a wider range of pressure fluctuations, helping to reduce ratio drift and deliver consistent beverage quality.

BluetoothSecure Configuration
Access valve settings through a dedicated Bluetooth mobile application while helping prevent unauthorized adjustments.

Easy Setup and Calibration
Configure, test, and calibrate the valve directly from the Bluetooth app, streamlining installation and service procedures.
