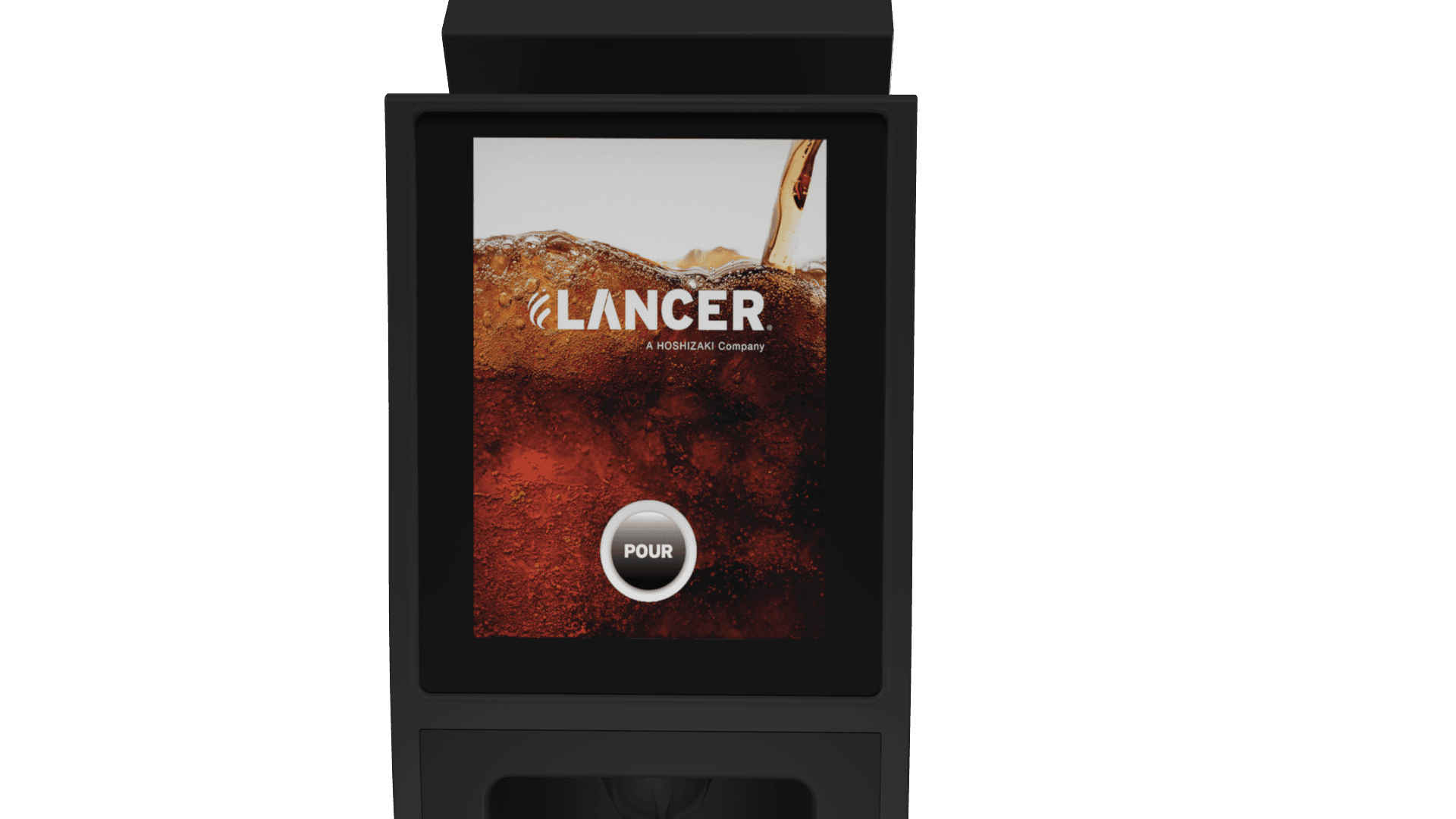

Personalized Touchscreen Beverage Experience

The TST’s interactive touchscreen allows customers to tailor their drink with ease, choosing from carbonated, non‑carbonated, and specialty beverages. Its adjustable interface and lighting patterns create an engaging and modern experience at the counter.

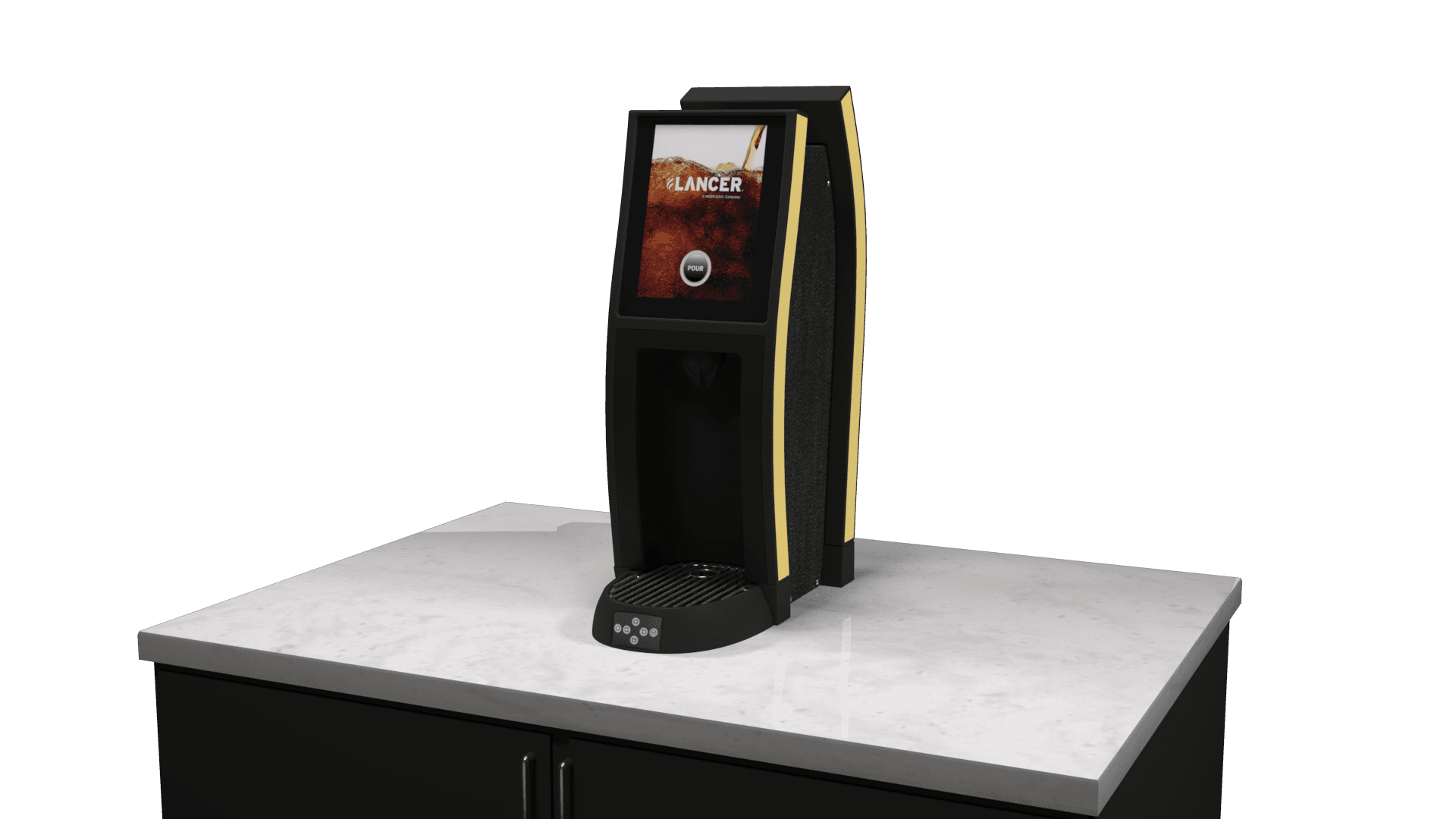

Compact Design with Versatile Drink Options

With a small 9.4" × 18.7" footprint, the TST fits comfortably on countertops without sacrificing capability. It dispenses up to 10 brands with optional bonus flavors, offering operators a wide range of beverage selections in a compact form.

Specifications
Specifications

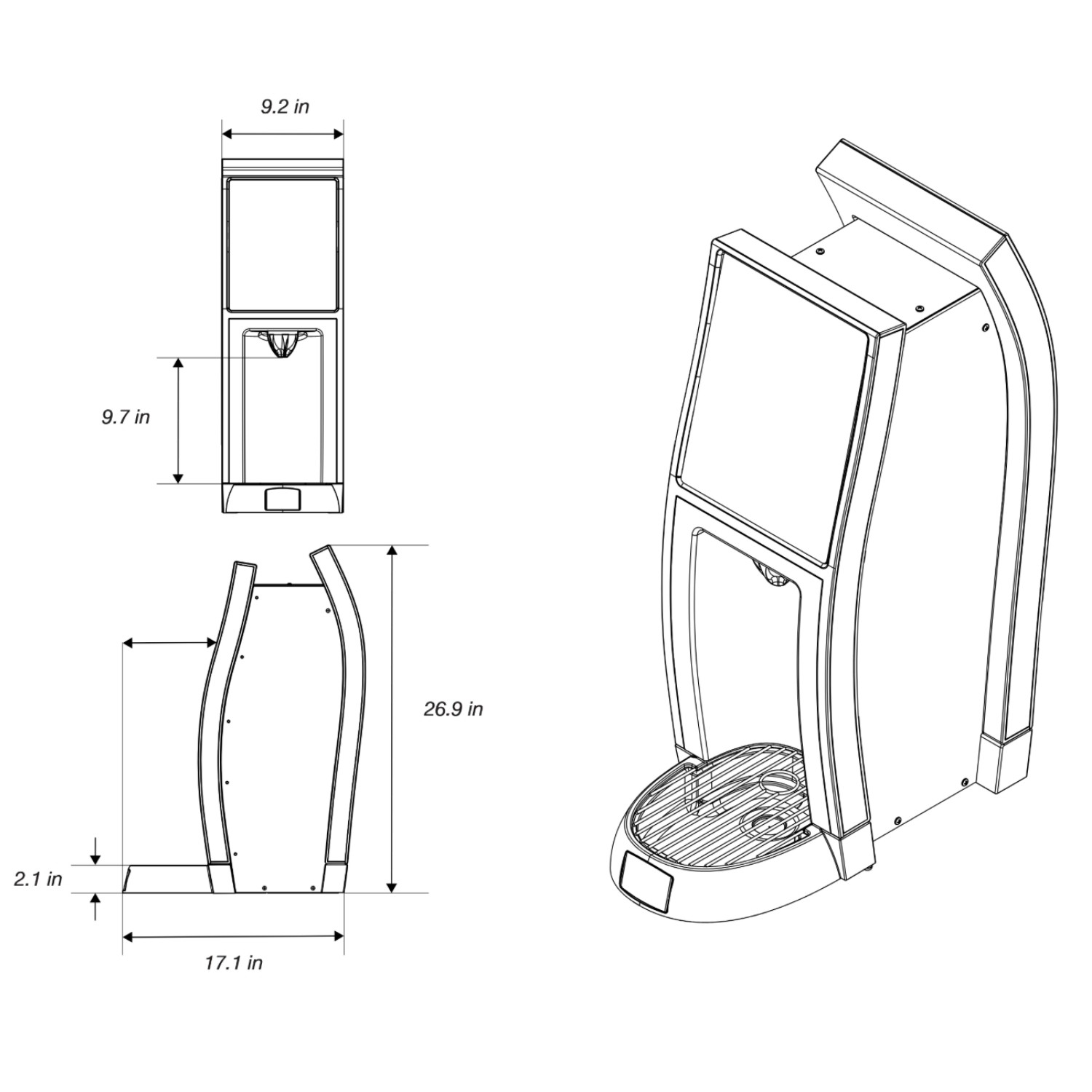

Dimensions
Width: 9.2 in (234 mm)
Depth: 17.1 in (434 mm)
Height: 26.9 in (683 mm)

Weight
Shipping: 40 lb (18.14 kg)
Operating: 35 lb (15.88 kg)

Electrical
24 VDC / 2.0 Amps

Flow Rate
1.5 - 2.0 ounces per second

Fittings
Carb Water Inlet: 3/8 inch (9.5 mm) barb
Carb Water Outlet: 3/8 inch (9.5 mm) barb
Plain Water Inlet: 3/8 inch (9.5 mm) barb
Brand Syrup Inlets: 3/8 inch (9.5 mm) barb
Drain Fitting: 5/8 inch (15.9 mm) barb

Features
Features

› Unique beverage offerings

› Carbonated or non-carbonated

› Dispense up to 10 brands and up to 4 bonus flavor shots

› Interactive touchscreen provides a personalized experience

› Adjustable interface and lighting patterns

› Small footprint - 9.4” (238.76 mm) x 18.7” (474.98 mm)

› Countertop installation

› Aether tea cartridge included

Specifications
Specifications

Dimensions
Width: 9.2 in (234 mm)
Depth: 17.1 in (434 mm)
Height: 26.9 in (683 mm)

Weight
Shipping: 40 lb (18.14 kg)
Operating: 35 lb (15.88 kg)

Electrical
24 VDC / 2.0 Amps

Flow Rate
1.5 - 2.0 ounces per second

Fittings
Carb Water Inlet: 3/8 inch (9.5 mm) barb
Carb Water Outlet: 3/8 inch (9.5 mm) barb
Plain Water Inlet: 3/8 inch (9.5 mm) barb
Brand Syrup Inlets: 3/8 inch (9.5 mm) barb
Drain Fitting: 5/8 inch (15.9 mm) barb

Features
Features

› Unique beverage offerings

› Carbonated or non-carbonated

› Dispense up to 10 brands and up to 4 bonus flavor shots

› Interactive touchscreen provides a personalized experience

› Adjustable interface and lighting patterns

› Small footprint - 9.4” (238.76 mm) x 18.7” (474.98 mm)

› Countertop installation

› Aether tea cartridge included
