Valve

Valves

The VersaPour valve is built with the highest quality materials and proven technology to provide our customers with consistent drink quality and reliability.

Request A Quote

Equipment Warranty

User Friendly Access

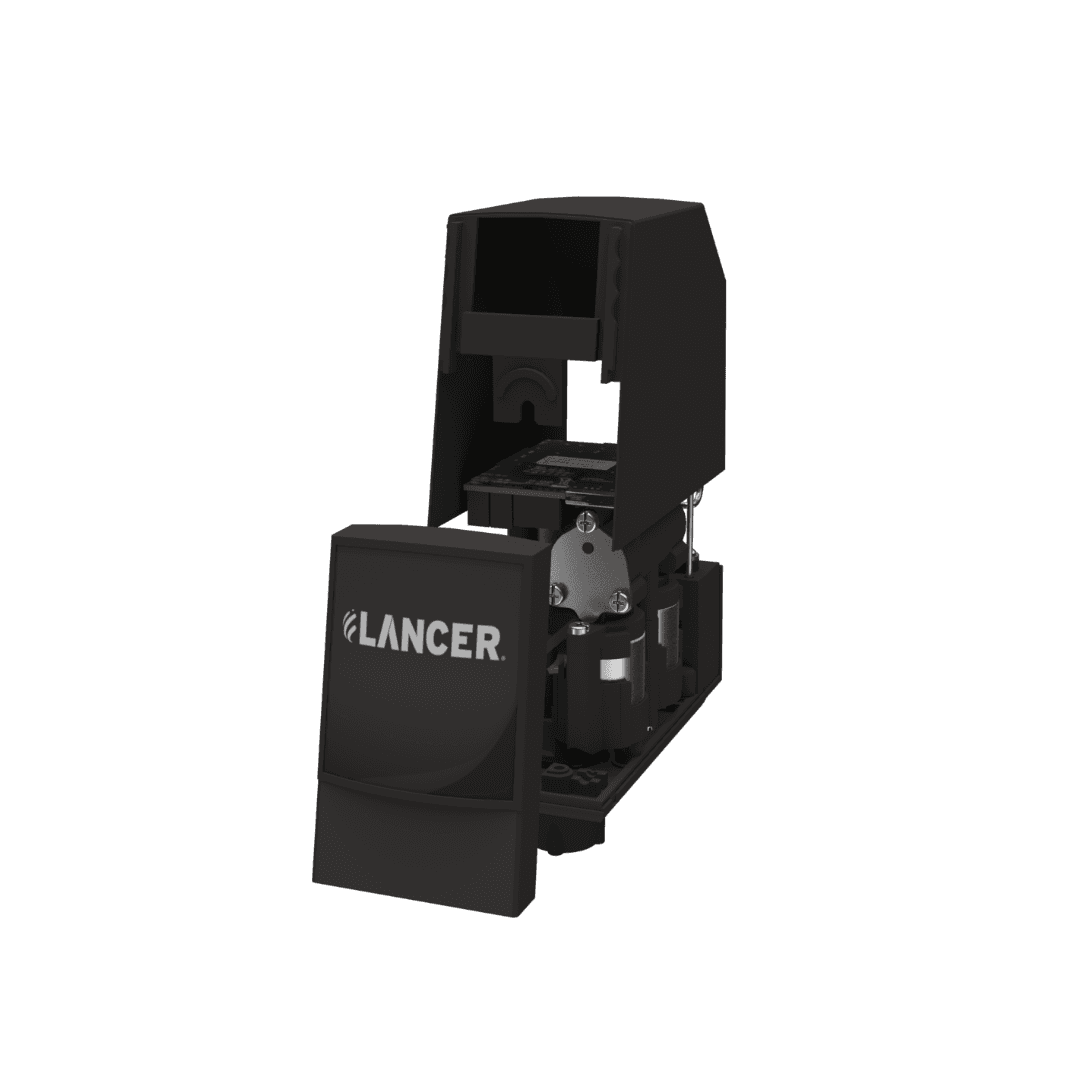

Our design uses fewer parts than most competitors, reducing complexity during both assembly and maintenance. It also provides easy front access, allowing users to make adjustments quickly and efficiently.

Reliable Performance With Less Upkeep

Our robust design features fewer failure points, resulting in lower maintenance needs, reduced operational costs, and minimal downtime. Backed by extensive life‑cycle and pressure testing, our valves deliver dependable performance. Together, these advantages ensure long‑lasting reliability with fewer service demands.

Specifications
Specifications

Flowing Pressure
Water: 40 – 110 psig (2.8 – 7.7 bar)
Syrup (Sugar): 20 – 70 psig (1.4 – 4.9 bar)
Syrup (Diet/Light): 10 – 70 psig (0.7 – 4.9 bar)

Ratio Adjustment Range
3.0-9.0 Water/Syrup by Volume
(dependent on finished drink flow rate)

Electrical
24VAC ±10%, 50/60 Hz

Features
Features

› Lowest “Life Cost” of operation available

› Simple design gives high reliability

› 3 oz/second flow rates

› Widest range of ratio control (3.0-9.0)t

Specifications
Specifications

Flowing Pressure
Water: 40 – 110 psig (2.8 – 7.7 bar)
Syrup (Sugar): 20 – 70 psig (1.4 – 4.9 bar)
Syrup (Diet/Light): 10 – 70 psig (0.7 – 4.9 bar)

Ratio Adjustment Range
3.0-9.0 Water/Syrup by Volume
(dependent on finished drink flow rate)

Electrical
24VAC ±10%, 50/60 Hz

Features
Features

› Lowest “Life Cost” of operation available

› Simple design gives high reliability

› 3 oz/second flow rates

› Widest range of ratio control (3.0-9.0)t
