Ice Beverage Dispenser

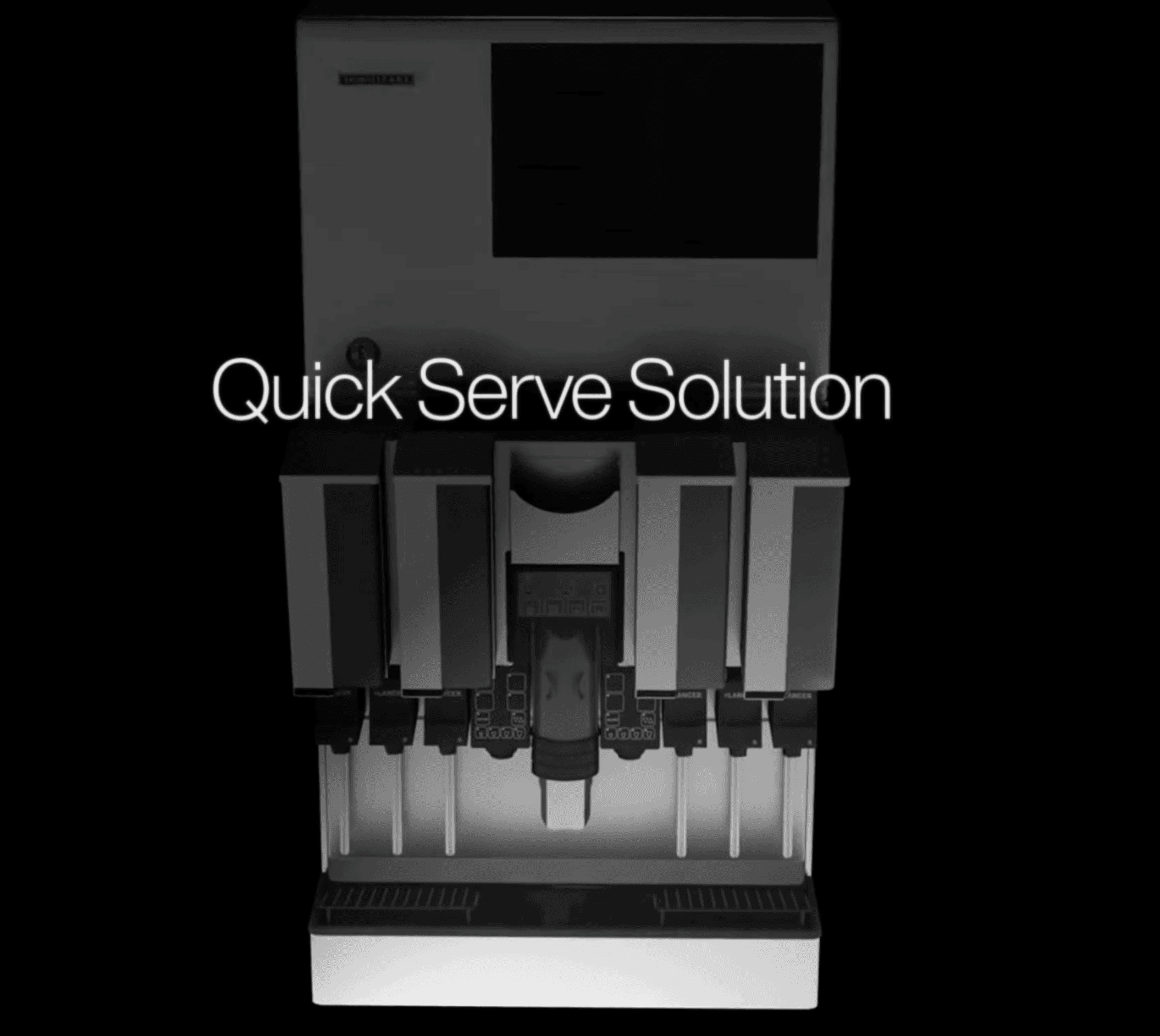

Quick-serve Solution

The QSS is engineered to optimize the speed of service, ensuring your customers receive their orders promptly, without the slightest compromise on the superior quality they expect. You can confidently promise your patrons a seamless and expedited experience

Request A Quote

Equipment Warranty

Flexible Valve Options for Maximum Drink Variety

The Multi-Flavor Nozzle expands menu possibilities with 14 valve configurations, including 12 chilled beverage lines and 2 ambient syrup lines. This allows QSRs to offer a broader mix of popular brands and flavor options from a single dispensing point.

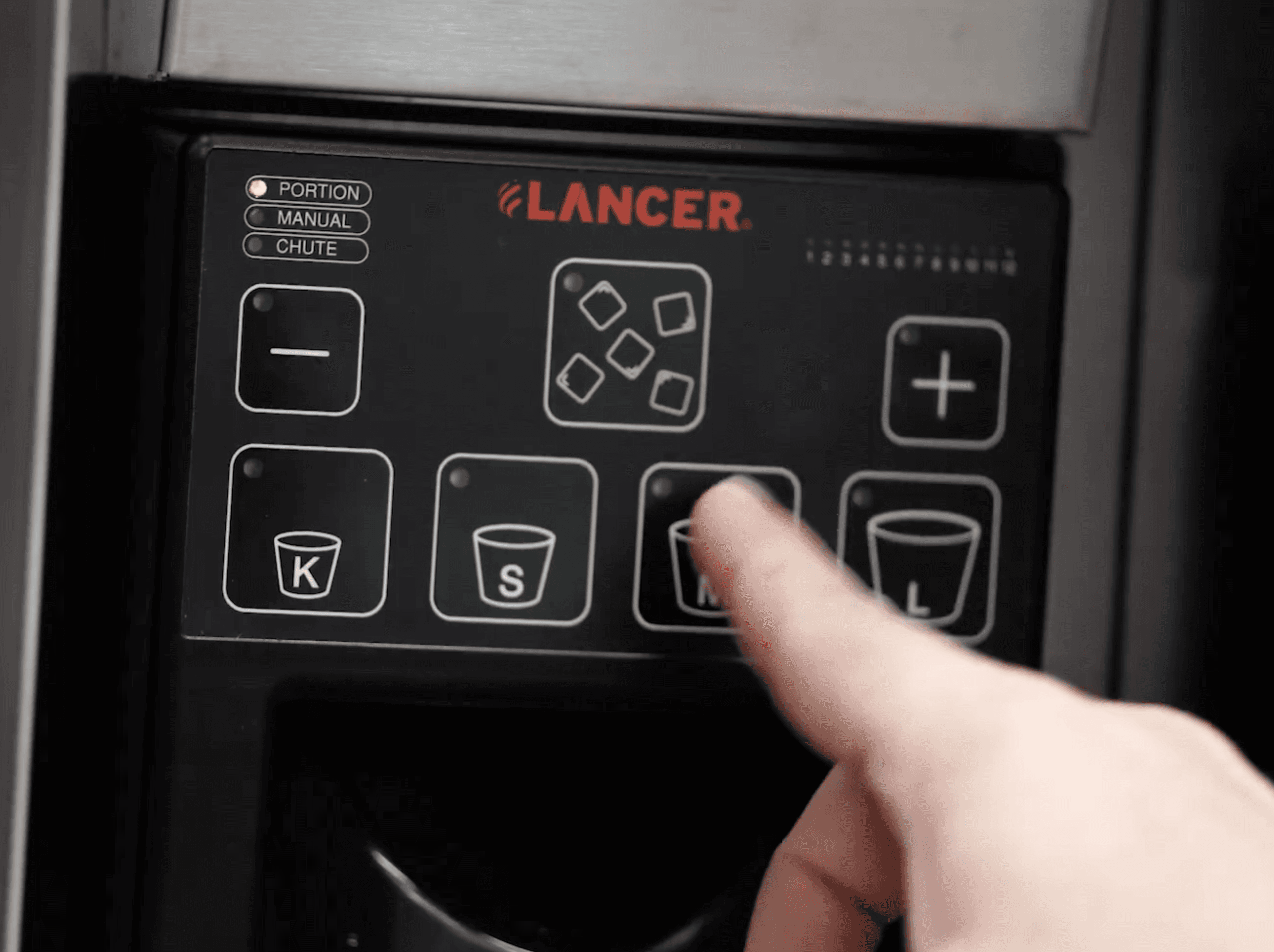

Accurate Ice Preset Portioning for Consistent Service

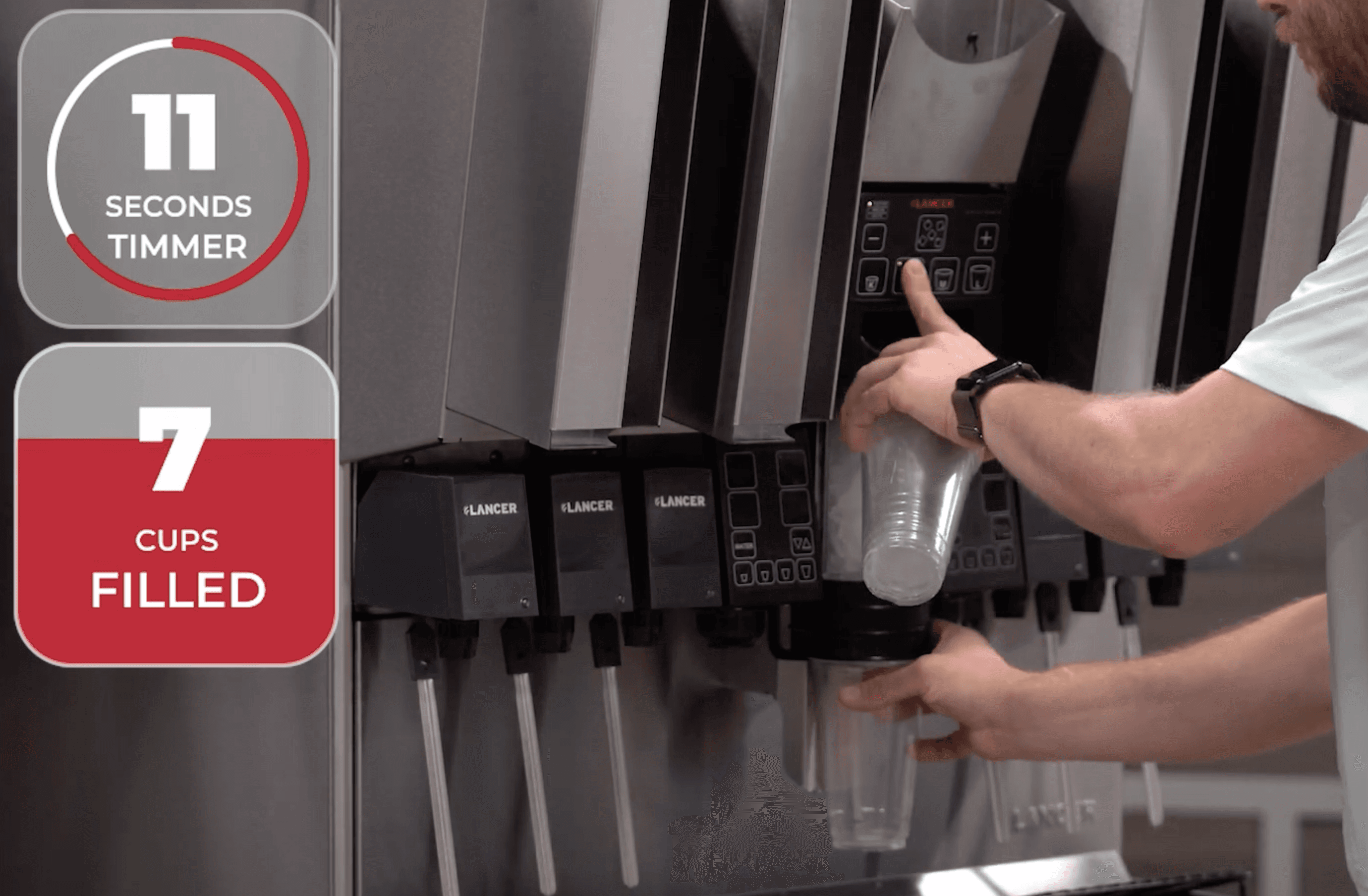

QSS features four adjustable ice presets, allowing operators to tailor ice portions to cup size, beverage type, or customer preference. This precision enables the QSS to dispense multiple cups of ice in under one minute, significantly reducing order fulfillment time during peak periods.

Specifications
Specifications

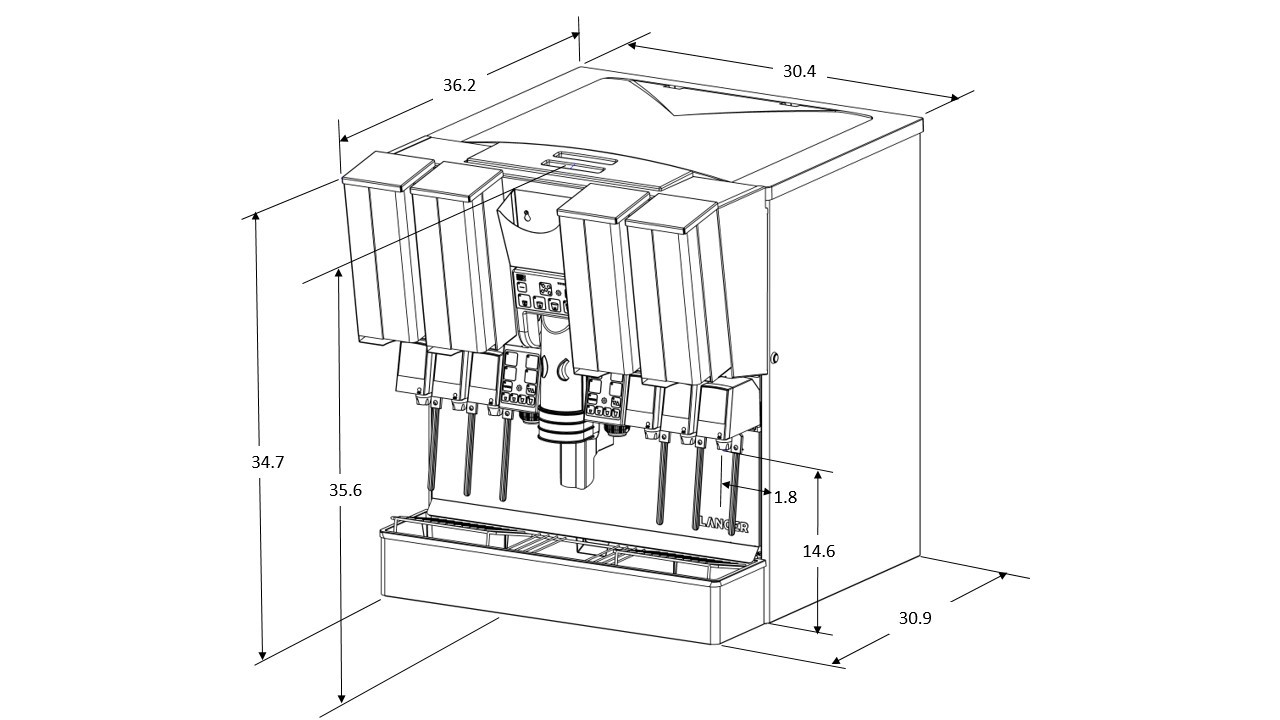

Dimensions
Width: 30.4 in (772 mm)
Depth: 30.9 in (785 mm)
Height: 35.6 in (904 mm)

Weight
With Ice: 630 lb (286 kg)
Shipping: 436 lb (198 kg)

Electrical
120 VAC / 60 Hz / 2.25 Amps

Ice Capacity Weight
Capacity: 250 lb (113 kg)
Dispensable: 175 lb (79 kg)

Fittings
Soda Inlets: 3/8” (9.5mm) male barb
Chilled Syrup Inlets: 3/8” (9.5mm) male barb
Pneumatic Inlet: 1/4” (6.0mm) male barb

Features
Features

› Custom cup size presets for ice

› Adjustable ice portion for customer preference

› Accurate ice portioning

› Multi-Valve Unit offers more brand options

› Multi-Flavor nozzle provides an enhanced pour performance

› 14 Valve Configurations: 12 Chilled syrup lines and 2 ambient syrup lines

› Flexibility between multi-flavor & LEV valve options (two valve position)

› Two LEV positions & two MVU positions have carb/non-carb flexibility

› Large capacity drip tray & cup rest

Specifications
Specifications

Dimensions
Width: 30.4 in (772 mm)
Depth: 30.9 in (785 mm)
Height: 35.6 in (904 mm)

Weight
With Ice: 630 lb (286 kg)
Shipping: 436 lb (198 kg)

Electrical
120 VAC / 60 Hz / 2.25 Amps

Ice Capacity Weight
Capacity: 250 lb (113 kg)
Dispensable: 175 lb (79 kg)

Fittings
Soda Inlets: 3/8” (9.5mm) male barb
Chilled Syrup Inlets: 3/8” (9.5mm) male barb
Pneumatic Inlet: 1/4” (6.0mm) male barb

Features
Features

› Custom cup size presets for ice

› Adjustable ice portion for customer preference

› Accurate ice portioning

› Multi-Valve Unit offers more brand options

› Multi-Flavor nozzle provides an enhanced pour performance

› 14 Valve Configurations: 12 Chilled syrup lines and 2 ambient syrup lines

› Flexibility between multi-flavor & LEV valve options (two valve position)

› Two LEV positions & two MVU positions have carb/non-carb flexibility

› Large capacity drip tray & cup rest
