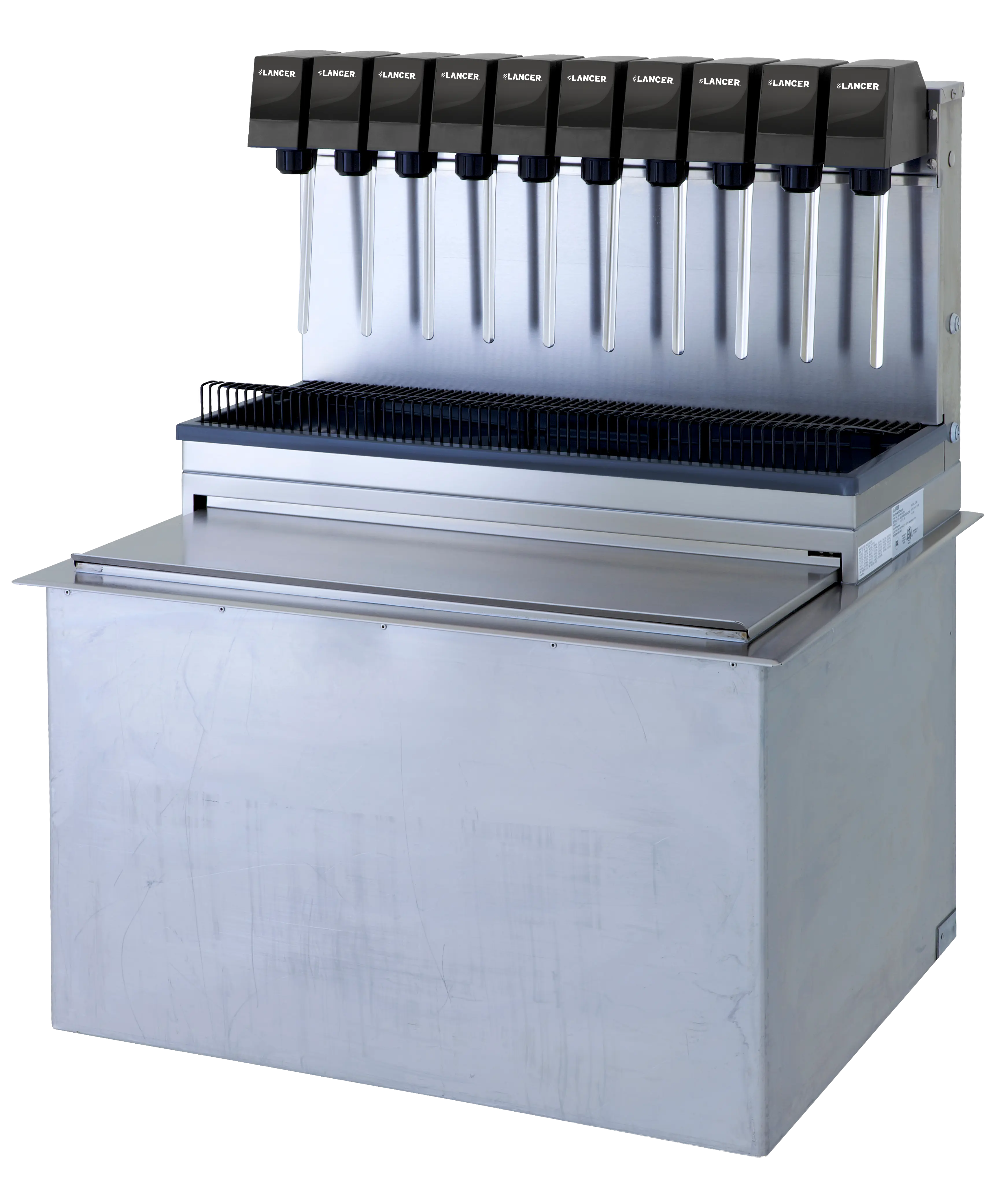

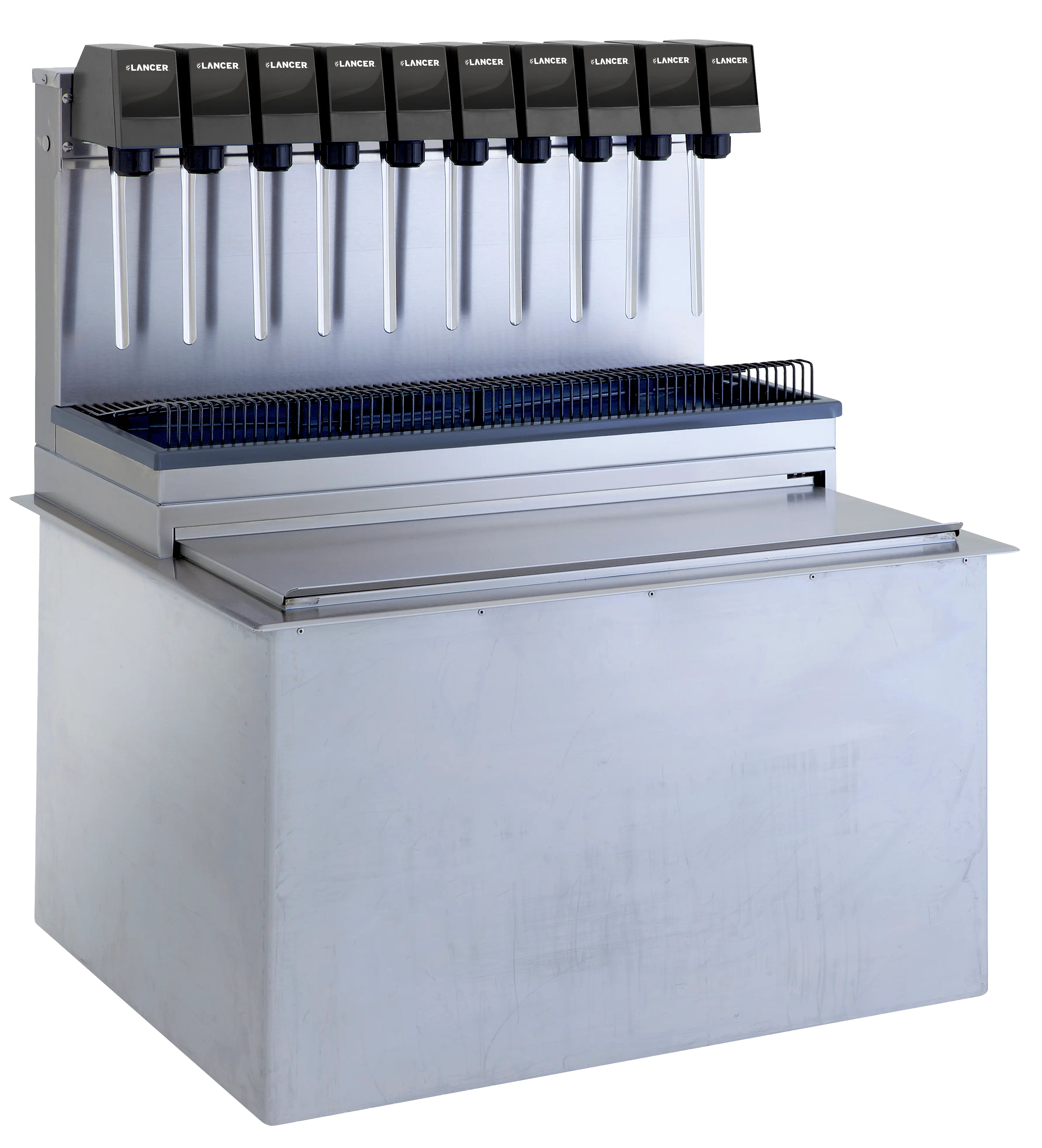

Ice Cooled Drop In

ICDI 23300

High Performance Ice Cooled Drop In Dispensers (ICDI) utilize advanced engineering simulations for the coldest drinks in the industry. Exceeding industry standards for draw capacity with flow rates up to 4.5 oz. per second.

Request A Quote

Equipment Warranty Periods

Reliable & Hygienic Design

Lancer Worldwide’s Ice Cooled Drop-In features an ice bin design that maximizes accessibility and guarantee beverage quality. The cold plate maintains consistently cold beverage temperatures and the ice bin switch ensures the dispenser is disabled as long as the lid is open. This streamlined, service-friendly layout supports reliability, hygiene, and ease of maintenance.

Consistent Beverage Temperatures

Lancer Worldwide’s Ice Cooled Drop-In features fully insulated product lines that run directly to each dispensing valve, helping maintain consistent beverage temperatures all the way to the point of pour. The streamlined routing keeps lines protected and efficiently organized, reducing thermal gain and supporting optimal drink quality.

Specifications
Specifications

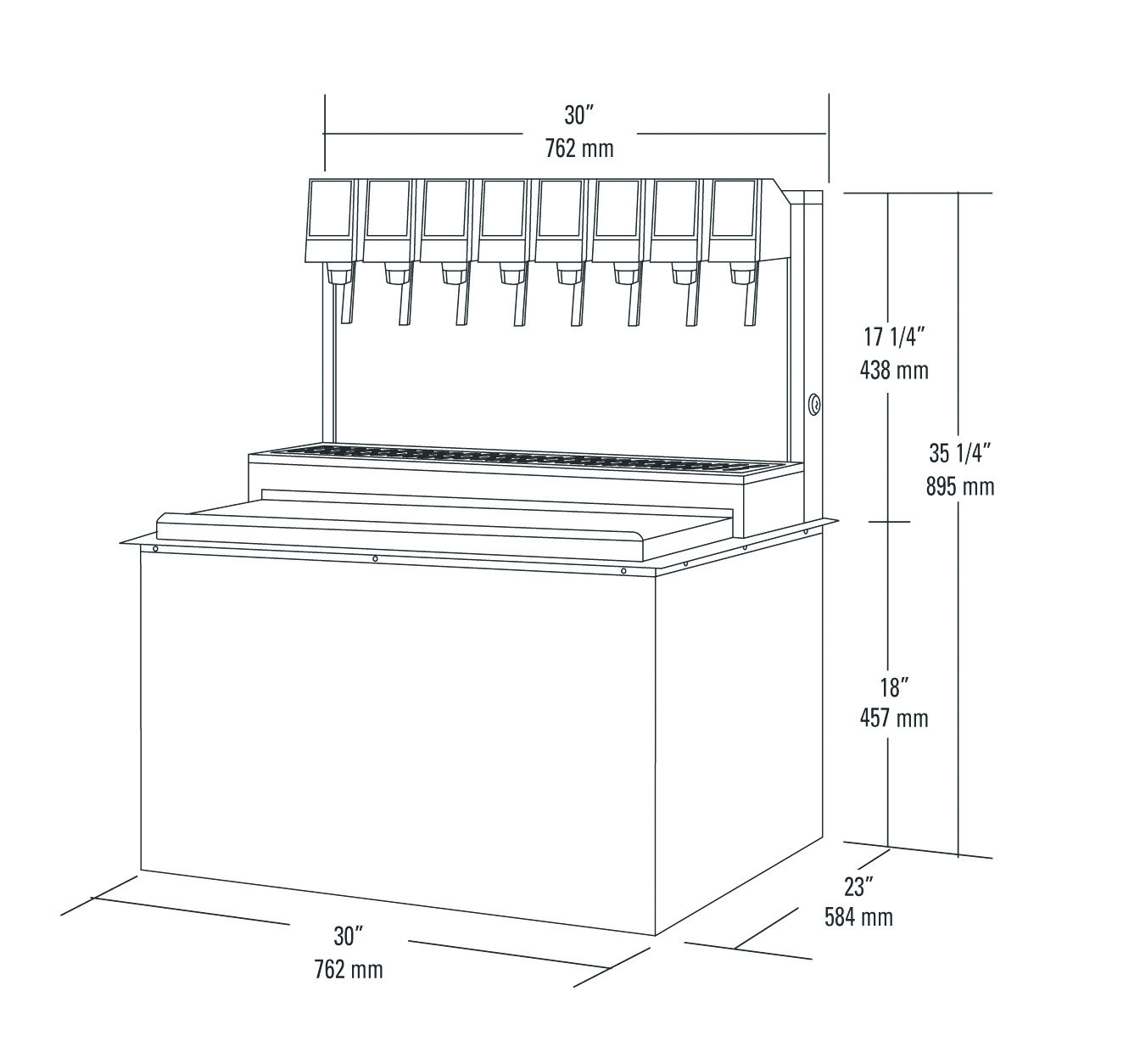

Dimensions
Height: 35.25 in (895 mm)
Width: 30 in (762 mm)
Depth: 23 in (584 mm)

Electrical
115V/60Hz
220-240V/50-60Hz

Weight
6 & 8 Valve:
Operating: 273 lb (124 kg)
Shipping: 230 lb (104.3 kg)

10 Valve:
Operating: 304 lb (137.9 kg)
Shipping: 255 lb (115.7 kg)

Ice Capacity
Ice Capacity 100 lb (45 kg)

Fittings
Soda inlets: 3/8’’ (9.5 mm ) male barb
Syrup inlets: 3/8’’ (9.5 mm ) male barb
Drain: 3/4” (19.05 mm) PVC

Features
Features

› Available with eight or 10 valves

› Stainless steel construction with sealed in cold plate

› 3/4” drain with strainer to prevent ice blockage

› Stainless steel flooded soda manifold and multiple plain water configuration › Ice bin insulated with CFC free structural foam

› Tower designed with removable splash plate and drip tray for easy cleaning

› Dispenser can accommodate any number of non-carbonated drinks

› Sliding bin lid with electric valve lock out

› Optional top merchandiser and back marquee feature lighted graphics for maximum impact

Specifications
Specifications

Dimensions
Height: 35.25 in (895 mm)
Width: 30 in (762 mm)
Depth: 23 in (584 mm)

Electrical
115V/60Hz
220-240V/50-60Hz

Weight
6 & 8 Valve:
Operating: 273 lb (124 kg)
Shipping: 230 lb (104.3 kg)

10 Valve:
Operating: 304 lb (137.9 kg)
Shipping: 255 lb (115.7 kg)

Ice Capacity
Ice Capacity 100 lb (45 kg)

Fittings
Soda inlets: 3/8’’ (9.5 mm ) male barb
Syrup inlets: 3/8’’ (9.5 mm ) male barb
Drain: 3/4” (19.05 mm) PVC

Features
Features

› Available with eight or 10 valves

› Stainless steel construction with sealed in cold plate

› 3/4” drain with strainer to prevent ice blockage

› Stainless steel flooded soda manifold and multiple plain water configuration › Ice bin insulated with CFC free structural foam

› Tower designed with removable splash plate and drip tray for easy cleaning

› Dispenser can accommodate any number of non-carbonated drinks

› Sliding bin lid with electric valve lock out

› Optional top merchandiser and back marquee feature lighted graphics for maximum impact
