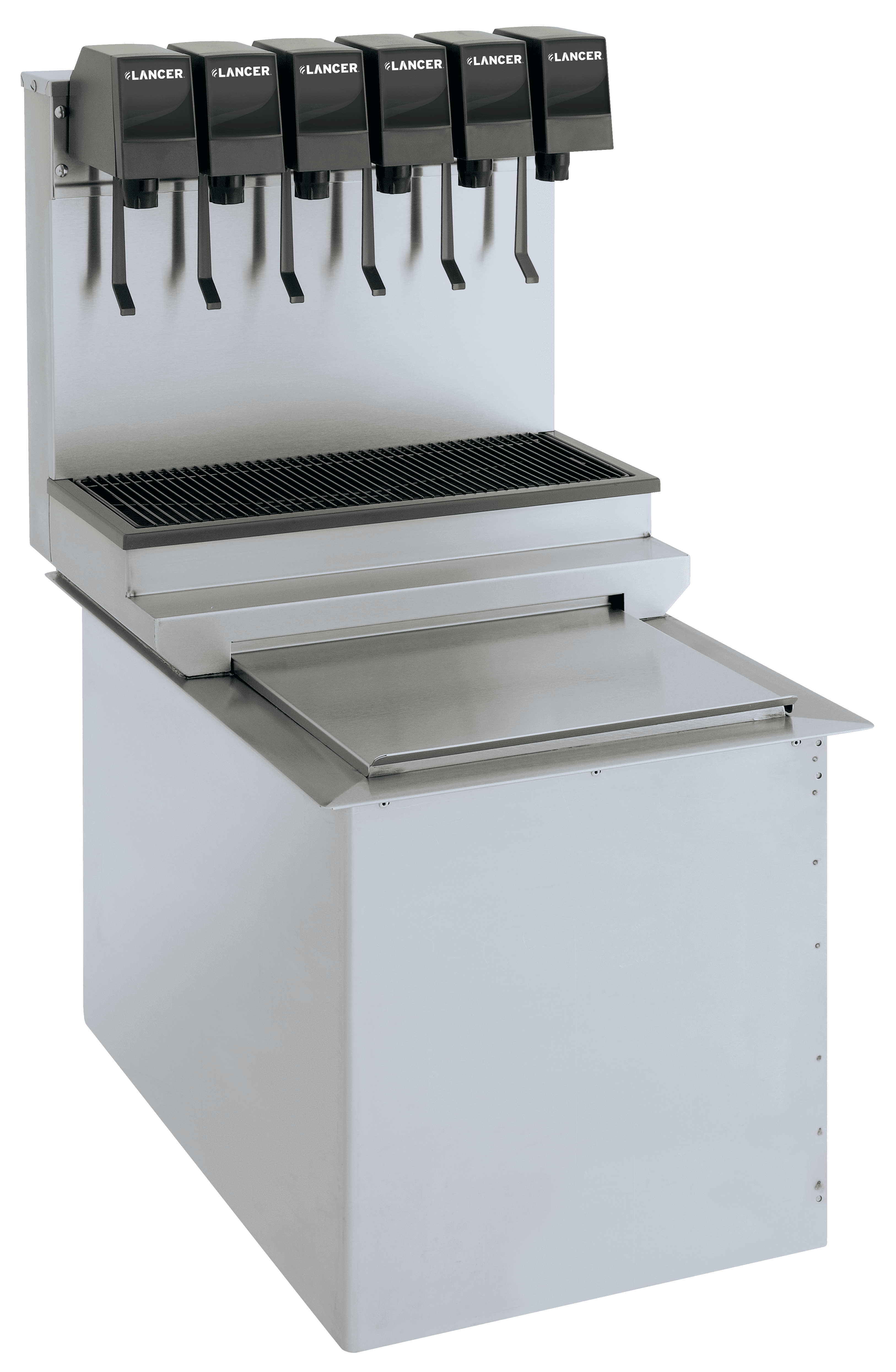

Ice Cooled Drop In

ICDI 2200

Request A Quote

SPECIFICATIONS

↓

Equipment Warranty

Reliable Ice‑Cooled Performance

With a 60‑lb ice capacity and cold‑plate cooling, the ICDI 2200 maintains drink temperatures below 40°F as long as ice is present. This performance supports steady dispensing rates in both 75°F and 90°F ambient environments.

Flexible 6‑ and 8‑Valves for Any Demand

The ICDI 2200 offers both 6‑valve and 8‑valve configurations, giving operators flexibility to support moderate or high‑volume beverage programs within the same reliable platform.

Specifications

Dimensions
Width: 15 in (381 mm)
Depth: 23 in (584 mm)
Height: 34.25 in (870 mm)

Electrical
Dispenser: 24 VAC, 60 Hz
Power Supply Input: 115 VAC

Weight
Shipping: 130 lb (59 kg)
Operating (with Ice): 166 lb (75 kg)
Ice Capacity: 60 lb (27 kg)

Features

› Front plumbing inlets

› Improved easy serviceability / cleanability

› Tower designed with removable splash plate and drip tray for easy cleaning

› Stainless steel construction with sealed-in cold plate

› 3/4” drain with strainer to prevent ice blockage

› Stainless steel flooded soda manifold and multiple plain water configuration

› Ice bin insulated with CFC free structural foam

› LEV Valves Standard, Other valves available upon request

› Key lock switch
