Ice Beverage Dispenser

IBD 44"

The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed syrup and water lines deliver excellent icy cold drinks. Versatile valve configurations and a portion control option allow for easy beverage cost monitoring. Topped with a compelling wraparound display, the IBD is a favorite.

Request A Quote

Equipment Warranty

High‑Volume Service with Dual Ice Chutes

IBD 44 features two ice chutes and a 12‑valve configuration, making it ideal for high‑traffic self‑serve environments. Customers can access ice from multiple points, improving service flow during peak times.

Maximum Ice Storage for Heavy‑Demand Operations

With a 360‑lb ice capacity and 300‑lb dispensable volume, IBD 44 delivers the highest storage in the series. Its hex‑drive ice agitation and fully insulated bin ensure consistent, reliable dispensing even in the busiest locations.

Specifications
Specifications

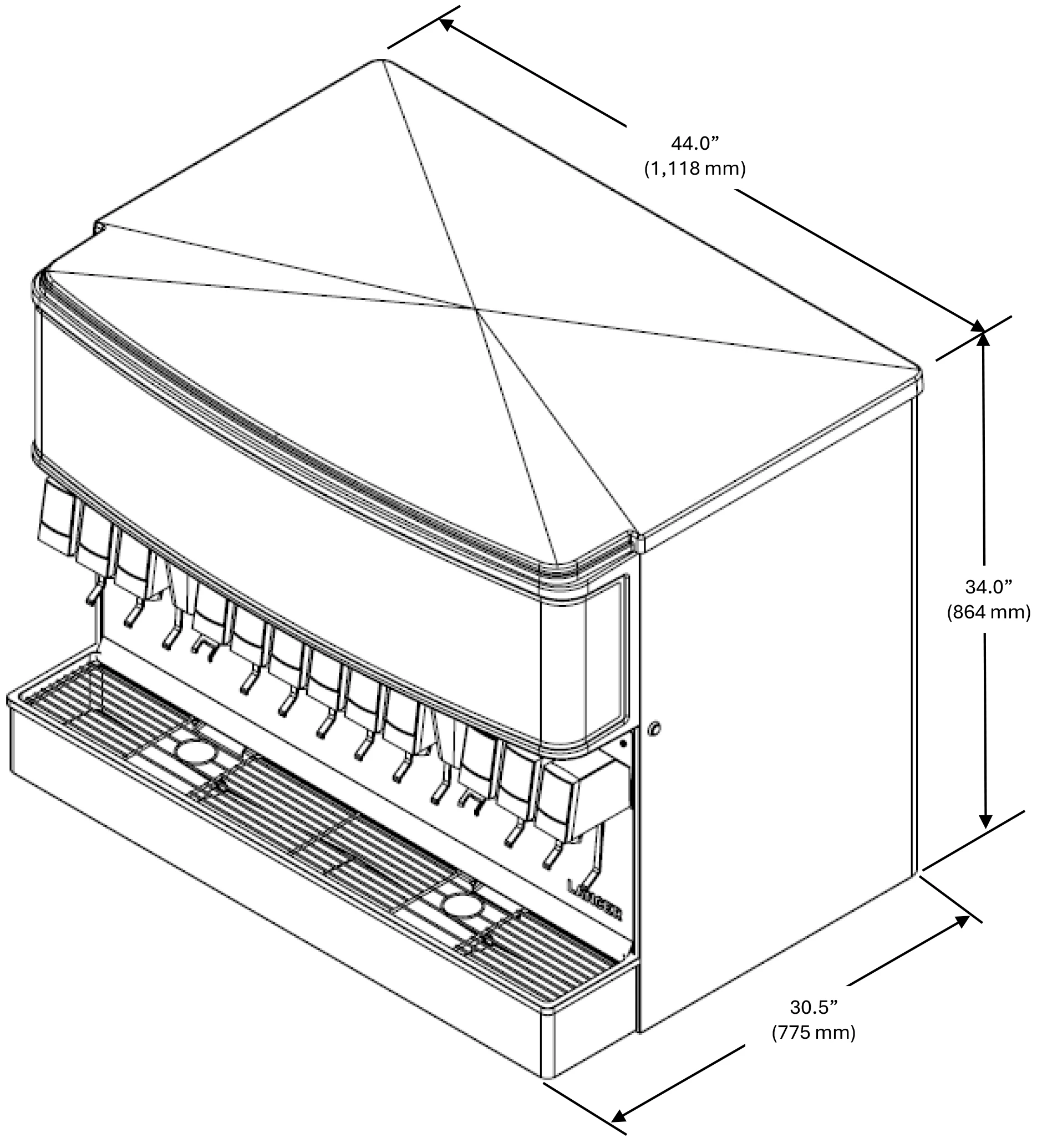

Dimensions
Width: 44.0 in (1,118 mm)
Depth: 30.5 in (775 mm)
Height: 34.0 in (864 mm)

Space Required
Width: 46 in (1168 mm)
Depth: 31.5 in (800 mm)

Weight
Shipping: 460 lb (209 kg)
Empty (without Ice): 400 lb (181 kg)

Electrical
115 VAC / 60 Hz / 6.0 Amps
220-240 VAC / 50/60 Hz / 3.0 Amps

Ice
Capacity: 360 lb (163 kg)
Dispensable: 300 lb (136 kg)

Features
Features

› Illuminated interchangeable front graphics

› High capacity ice storage bin

› Stainless steel construction; exterior and interior

› High capacity drip tray helps avoid safety hazards and drink station cleanup from spills

› Unique hex drive ice agitation and dispense drive system

› Multiple valve configurations available for self-serve and portion control operation

› Fully insulated storage bin and drip tray to control condensation and avoid moisture related safety hazards

› Front and rear plumbing access for installation flexibility

› LEV® valves standard, other valves available upon request

› Key lock switch

Specifications
Specifications

Dimensions
Width: 44.0 in (1,118 mm)
Depth: 30.5 in (775 mm)
Height: 34.0 in (864 mm)

Space Required
Width: 46 in (1168 mm)
Depth: 31.5 in (800 mm)

Weight
Shipping: 460 lb (209 kg)
Empty (without Ice): 400 lb (181 kg)

Electrical
115 VAC / 60 Hz / 6.0 Amps
220-240 VAC / 50/60 Hz / 3.0 Amps

Ice
Capacity: 360 lb (163 kg)
Dispensable: 300 lb (136 kg)

Features
Features

› Illuminated interchangeable front graphics

› High capacity ice storage bin

› Stainless steel construction; exterior and interior

› High capacity drip tray helps avoid safety hazards and drink station cleanup from spills

› Unique hex drive ice agitation and dispense drive system

› Multiple valve configurations available for self-serve and portion control operation

› Fully insulated storage bin and drip tray to control condensation and avoid moisture related safety hazards

› Front and rear plumbing access for installation flexibility

› LEV® valves standard, other valves available upon request

› Key lock switch
