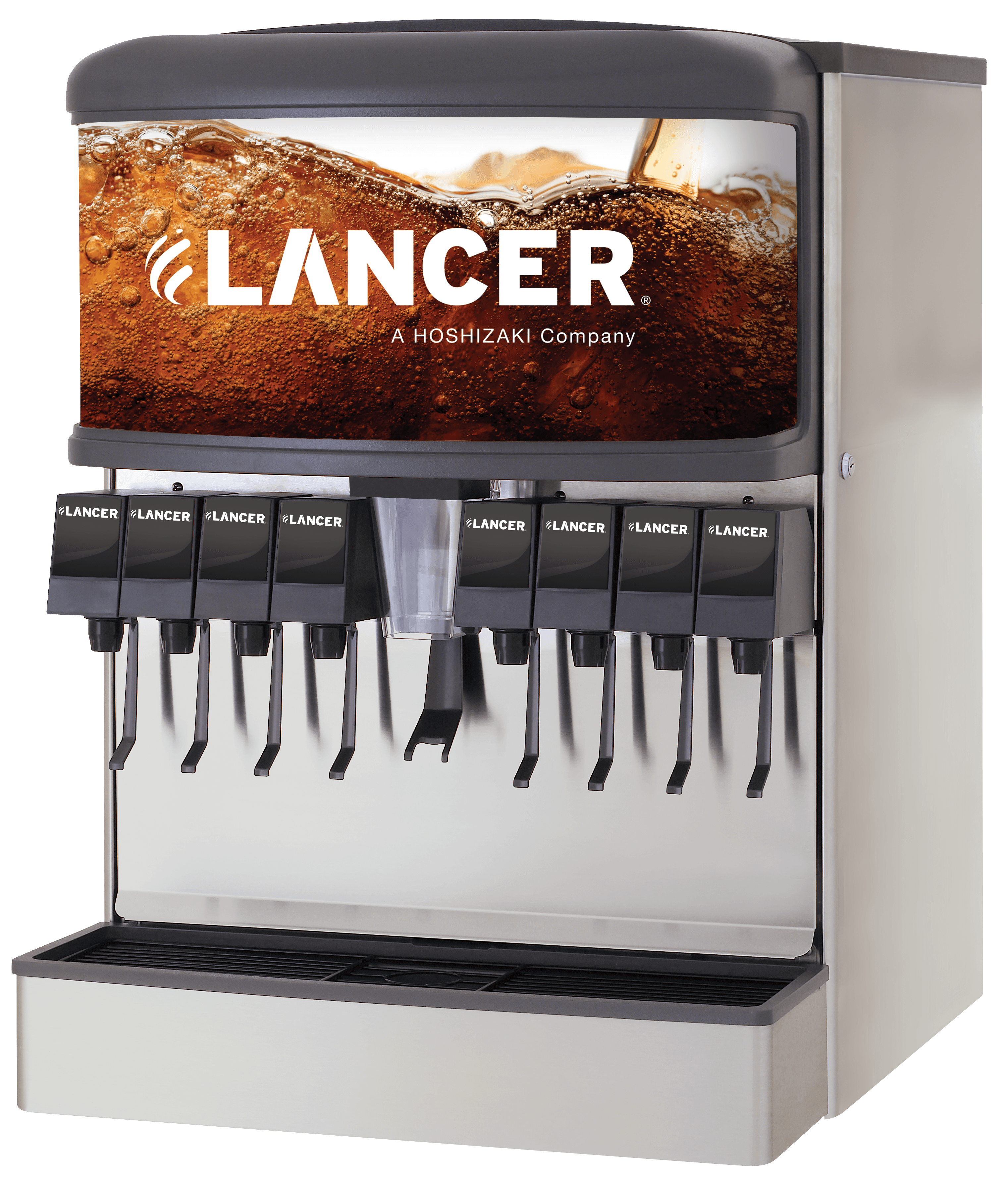

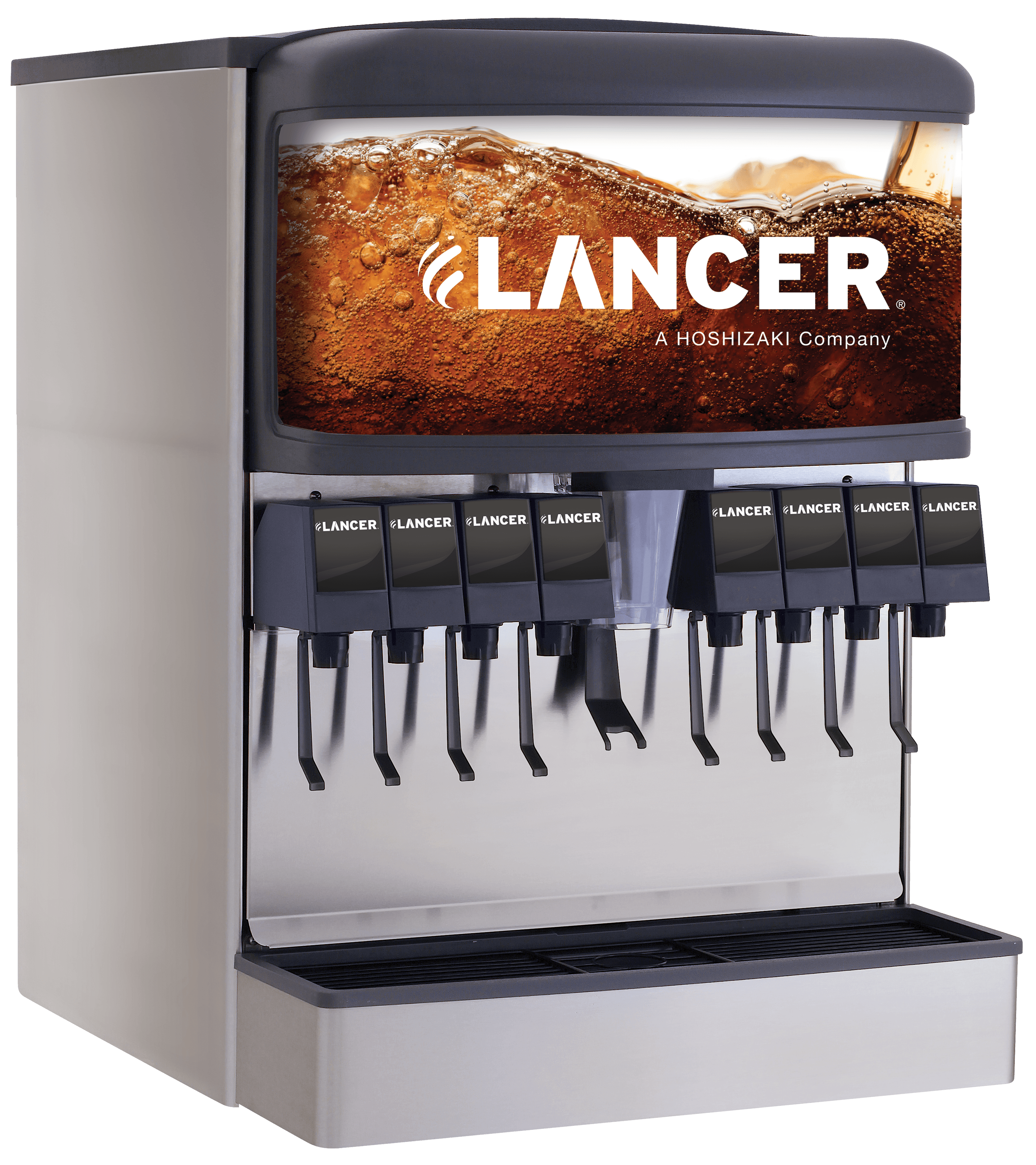

Ice Beverage Dispenser

IBD 25"

The IBD is Lancer’s #1 selling self-serve dispenser. Hard plumbed syrup and water lines deliver excellent icy cold drinks. Versatile valve configurations and a portion control option allow for easy beverage cost monitoring. Topped with a compelling wraparound display, the IBD is a favorite.

Request A Quote

Equipment Warranty

Compact 8‑Valve Design

IBD 25 expands to an 8‑valve configuration, offering greater drink selection while maintaining a manageable 25‑inch width. The illuminated front graphics provide strong branding impact at the beverage station.

High‑Capacity Ice Storage

A 205‑lb ice capacity and 160‑lb dispensable volume make the IBD 25 capable of supporting heavier beverage demand. The insulated bin and high‑capacity drip tray reduce cleanup and help keep the drink station looking clean.

Specifications
Specifications

Dimensions
Width: 25.0 in (635 mm)
Depth: 30.5 in (775 mm)
Height: 34.0 in (864 mm)

Weight
Shipping: 285 lb (129 kg)
Empty (without Ice): 250 lb (113 kg)

Electrical
115 VAC / 60 Hz / 3.6 Amps
230 VAC / 50-60 Hz / 1.8 Amps

Ice
Ice Capacity: 210 lb (95 kg)
Ice Dispensable: 170 lbs (77.1 kg)

Features
Features

› Illuminated interchangeable front graphics

› High capacity ice storage bin

› Stainless steel construction; exterior and interior

› High capacity drip tray helps avoid safety hazards and drink station cleanup from spills

› Unique hex drive ice agitation and dispense drive system

› Multiple valve configurations available for self-serve and portion control operation

› Fully insulated storage bin and drip tray to control condensation and avoid moisture related safety hazards

› Front and rear plumbing access for installation flexibility

› LEV® valves standard, other valves available upon request

› Key lock switch

Specifications
Specifications

Dimensions
Width: 25.0 in (635 mm)
Depth: 30.5 in (775 mm)
Height: 34.0 in (864 mm)

Weight
Shipping: 285 lb (129 kg)
Empty (without Ice): 250 lb (113 kg)

Electrical
115 VAC / 60 Hz / 3.6 Amps
230 VAC / 50-60 Hz / 1.8 Amps

Ice
Ice Capacity: 210 lb (95 kg)
Ice Dispensable: 170 lbs (77.1 kg)

Features
Features

› Illuminated interchangeable front graphics

› High capacity ice storage bin

› Stainless steel construction; exterior and interior

› High capacity drip tray helps avoid safety hazards and drink station cleanup from spills

› Unique hex drive ice agitation and dispense drive system

› Multiple valve configurations available for self-serve and portion control operation

› Fully insulated storage bin and drip tray to control condensation and avoid moisture related safety hazards

› Front and rear plumbing access for installation flexibility

› LEV® valves standard, other valves available upon request

› Key lock switch
