Counter Electric Dispenser

CED 800

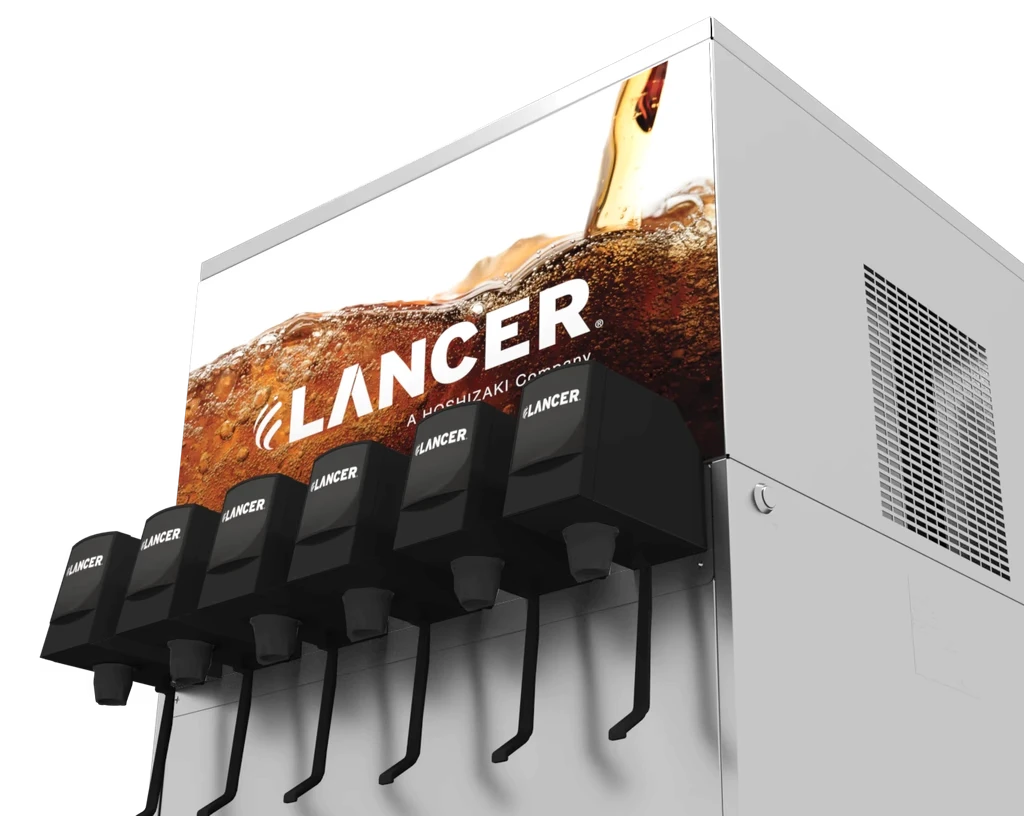

Introducing the CED 800 with the latest technology for energy savings and sustainability, with the flexibility to offer carbonated and non-carbonated beverages.

Request A Quote

Equipment Warranty

Service‑Friendly Design with Flexible Configuration

The CED 800 uses R290 refrigerant, Eco‑Smart Cooling, and reduced energy consumption to deliver powerful performance with a lower environmental impact. Its efficient cooling system supports both carbonated and non‑carbonated beverages while maintaining consistent quality.

Energy‑Efficient Cooling

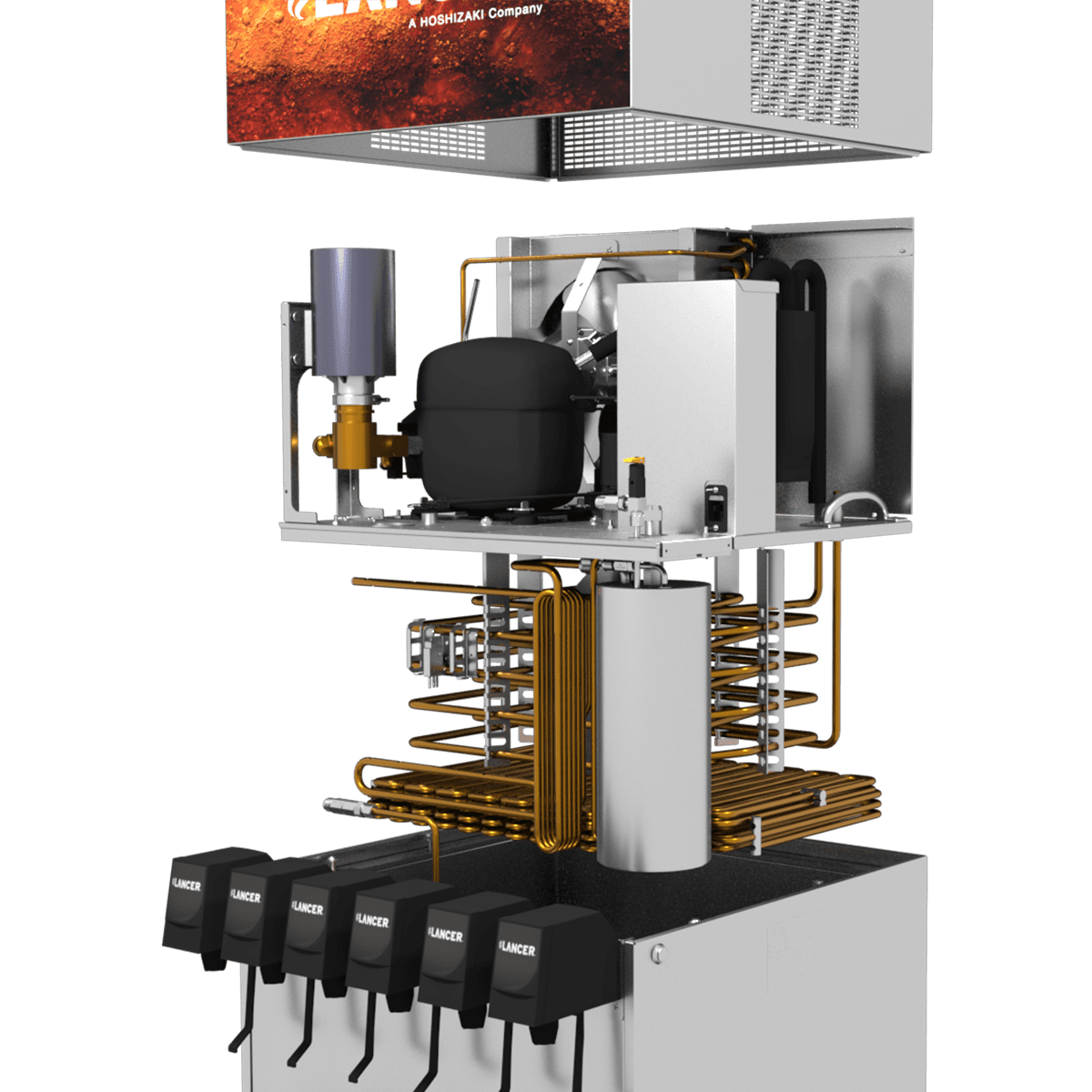

A removable refrigeration deck and added ventilation louvers make the CED 800 easy to service and maintain. With 6 or 8 post‑mix valve options and a flexible manifold configuration, the dispenser adapts seamlessly to a wide range of operational needs.




Specifications
Specifications

Dimensions
Width: 23.96 in (609 mm)
Depth: 28.49 in (724 mm)
Height: 32.27 in (820 mm)

Electrical
115V/60Hz, 12 Amps
220V/50Hz, 7.5 Amps
220V/60Hz, 8 Amps

Compressor
3/4 HP

Ambient Carb:
Empty: 205 lb (93 kg)
Operating: 355 lb (161 kg)
Shipping: 245 lb (111 kg)

Cold Carb:
Empty: 220 lb (99.8 kg)
Operating: 386 lb (175 kg)
Shipping: 267 lb (121 kg)

Ice Bank Weight
50 lb (23 kg)

Fittings
Carbonated Water Inlet: 3/8”(9.5 mm) male flare (Ambient Carb)
Plain Water inlet: 3/8”(9.5 mm) male barb
Syrup inlets: 3/8”(9.5 mm) male barb
CO2 inlet: 1/4” (6.35 mm) male barb (Cold Carb)

Features
Features

› R290 refrigerant

› Reduced energy consumption

› Eco-Smart coolingTM

› Available with 6 or 8 post mix valves

› Flexible manifold configuration

› Removable refrigeration deck for ease of service

› Stainless steel construction

› Added louvers for ventilation

› 3/4 HP compressor

› 3-way back block

Downloads
Downloads

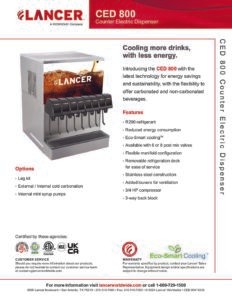

Specifications
Specifications

Dimensions
Width: 23.96 in (609 mm)
Depth: 28.49 in (724 mm)
Height: 32.27 in (820 mm)

Electrical
115V/60Hz, 12 Amps
220V/50Hz, 7.5 Amps
220V/60Hz, 8 Amps

Compressor
3/4 HP

Ambient Carb:
Empty: 205 lb (93 kg)
Operating: 355 lb (161 kg)
Shipping: 245 lb (111 kg)

Cold Carb:
Empty: 220 lb (99.8 kg)
Operating: 386 lb (175 kg)
Shipping: 267 lb (121 kg)

Ice Bank Weight
50 lb (23 kg)

Fittings
Carbonated Water Inlet: 3/8”(9.5 mm) male flare (Ambient Carb)
Plain Water inlet: 3/8”(9.5 mm) male barb
Syrup inlets: 3/8”(9.5 mm) male barb
CO2 inlet: 1/4” (6.35 mm) male barb (Cold Carb)

Features
Features

› R290 refrigerant

› Reduced energy consumption

› Eco-Smart coolingTM

› Available with 6 or 8 post mix valves

› Flexible manifold configuration

› Removable refrigeration deck for ease of service

› Stainless steel construction

› Added louvers for ventilation

› 3/4 HP compressor

› 3-way back block

Downloads
Downloads

Videos
