Counter Electric Dispenser

CED 600

Introducing the CED 600 with the latest technology for energy savings and sustainability, with the flexibility to offer carbonated and non-carbonated beverages.

Request A Quote

Equipment Warranty Periods

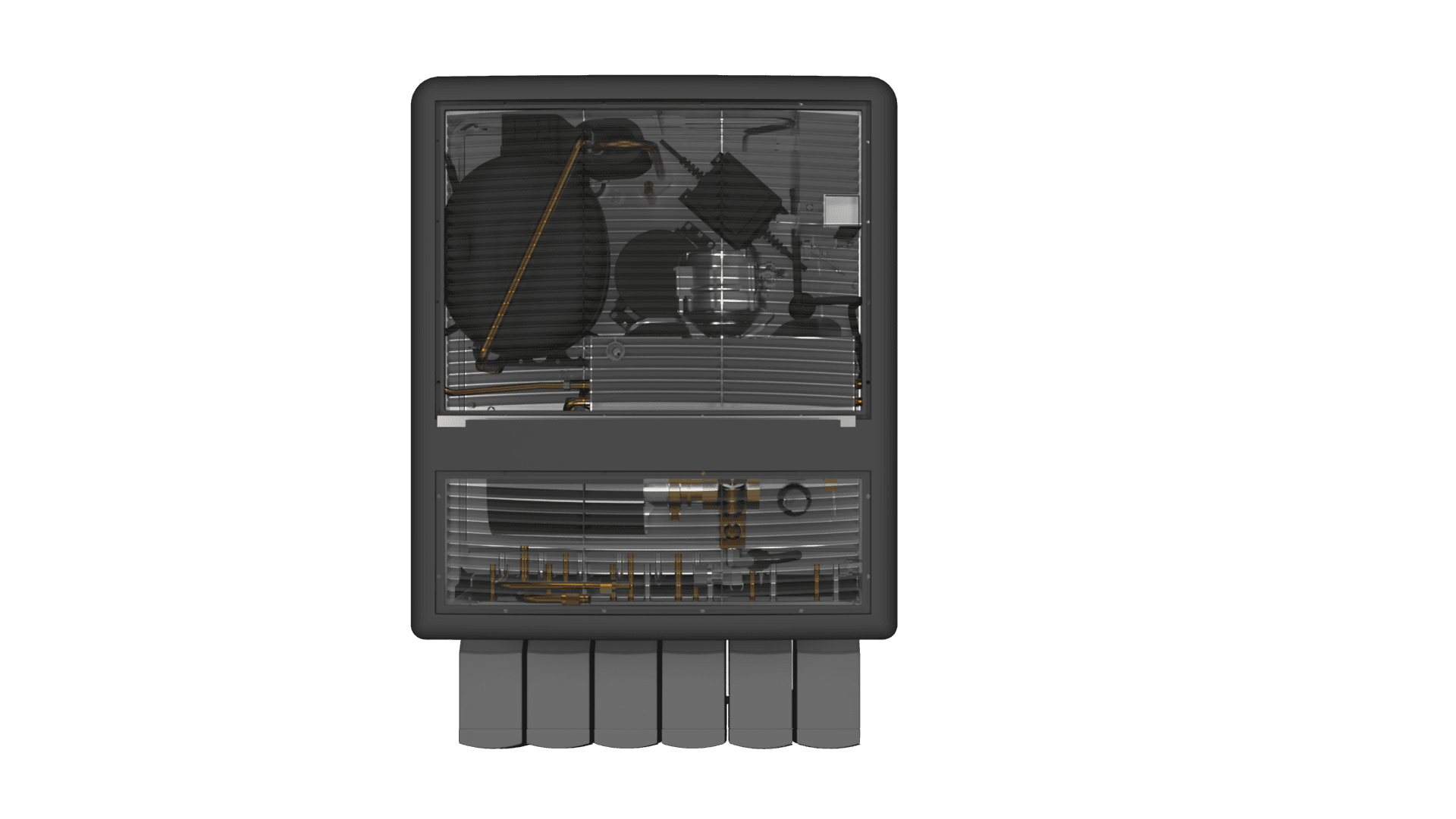

Energy‑Efficient Cooling Technology

The CED 600 uses R290 refrigerant and a fully louvered top to improve air circulation, resulting in efficient cooling and reduced energy consumption. This design helps operators maintain sustainability goals without compromising beverage performance.

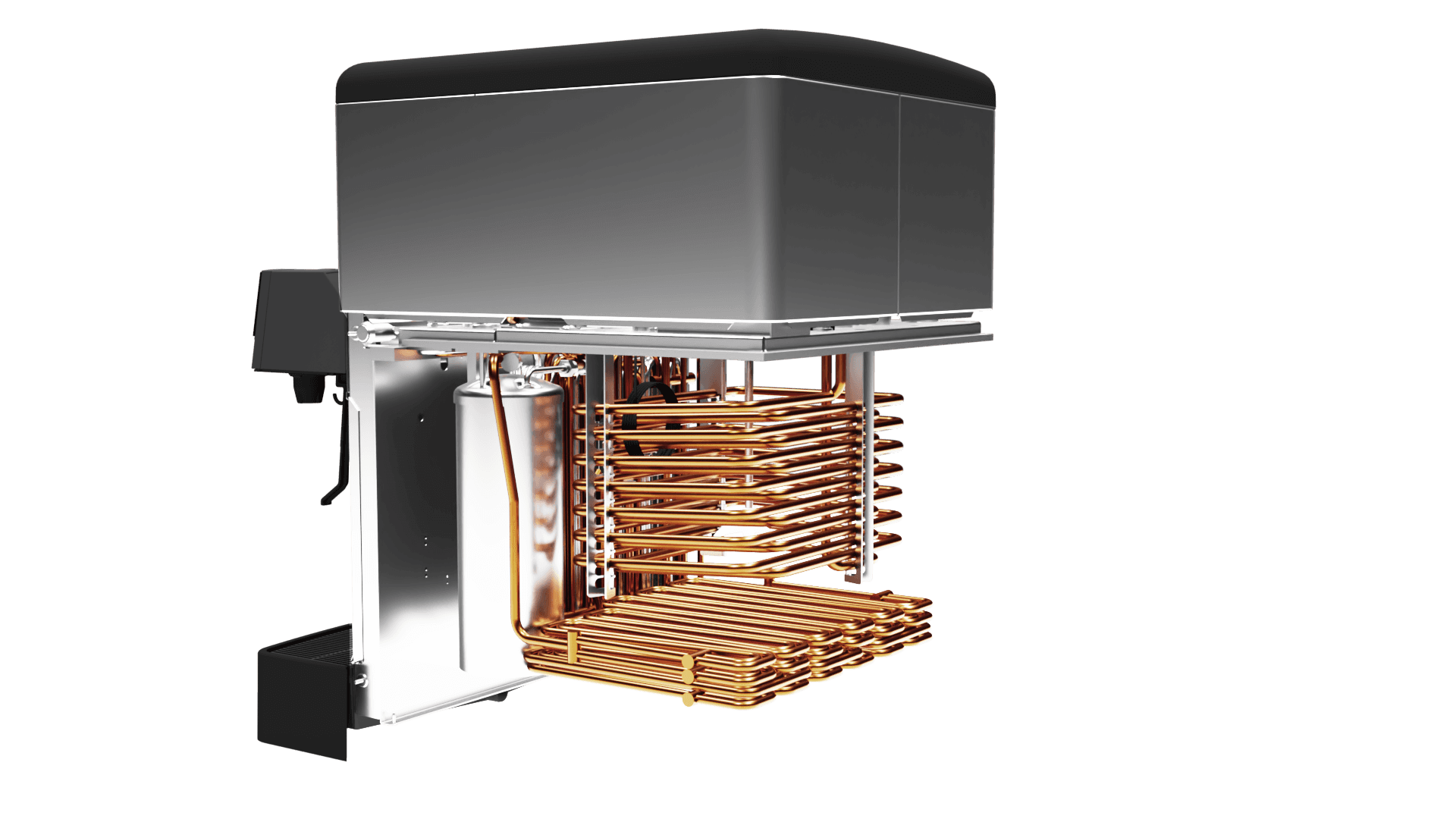

Service‑Friendly Design with Reliable Ice Bank Performance

A removable refrigeration deck and stainless steel construction make the CED 600 easy to access and maintain, reducing downtime and supporting long‑term durability. Its electronic ice bank control and 20‑lb ice bank work together to maintain stable temperatures and ensure consistently cold beverages, even during peak demand.

Specifications
Specifications

Dimensions
Height: 26.86 in (682 mm)
Width: 16.86 in (428 mm)
Depth: 25.56 in (649 mm)

Electrical
115V/60Hz, 8 Amps
230V/50Hz, 4 Amps

Weight
Empty: 146 lb (66.2 kg)
Operating: 237 lb (107.5 kg)
Shipping: 160 lb (72.5 kg)

Ice Bank Weight
18.8 lb (8.5 kg)

Compressor
407W (230V/50Hz)
285W (115V/60Hz)

Features
Features

› R290 refrigerant

› Fully louvered top provides air circulation for more efficient operation

› Stainless steel construction

› Key lock switch

› Electronic ice bank control

› Removable refrigeration deck for ease of service

› 3-way back block

Downloads
Downloads
Specifications
Specifications

Dimensions
Height: 26.86 in (682 mm)
Width: 16.86 in (428 mm)
Depth: 25.56 in (649 mm)

Electrical
115V/60Hz, 8 Amps
230V/50Hz, 4 Amps

Weight
Empty: 146 lb (66.2 kg)
Operating: 237 lb (107.5 kg)
Shipping: 160 lb (72.5 kg)

Ice Bank Weight
18.8 lb (8.5 kg)

Compressor
407W (230V/50Hz)
285W (115V/60Hz)

Features
Features

› R290 refrigerant

› Fully louvered top provides air circulation for more efficient operation

› Stainless steel construction

› Key lock switch

› Electronic ice bank control

› Removable refrigeration deck for ease of service

› 3-way back block

Downloads
Downloads
