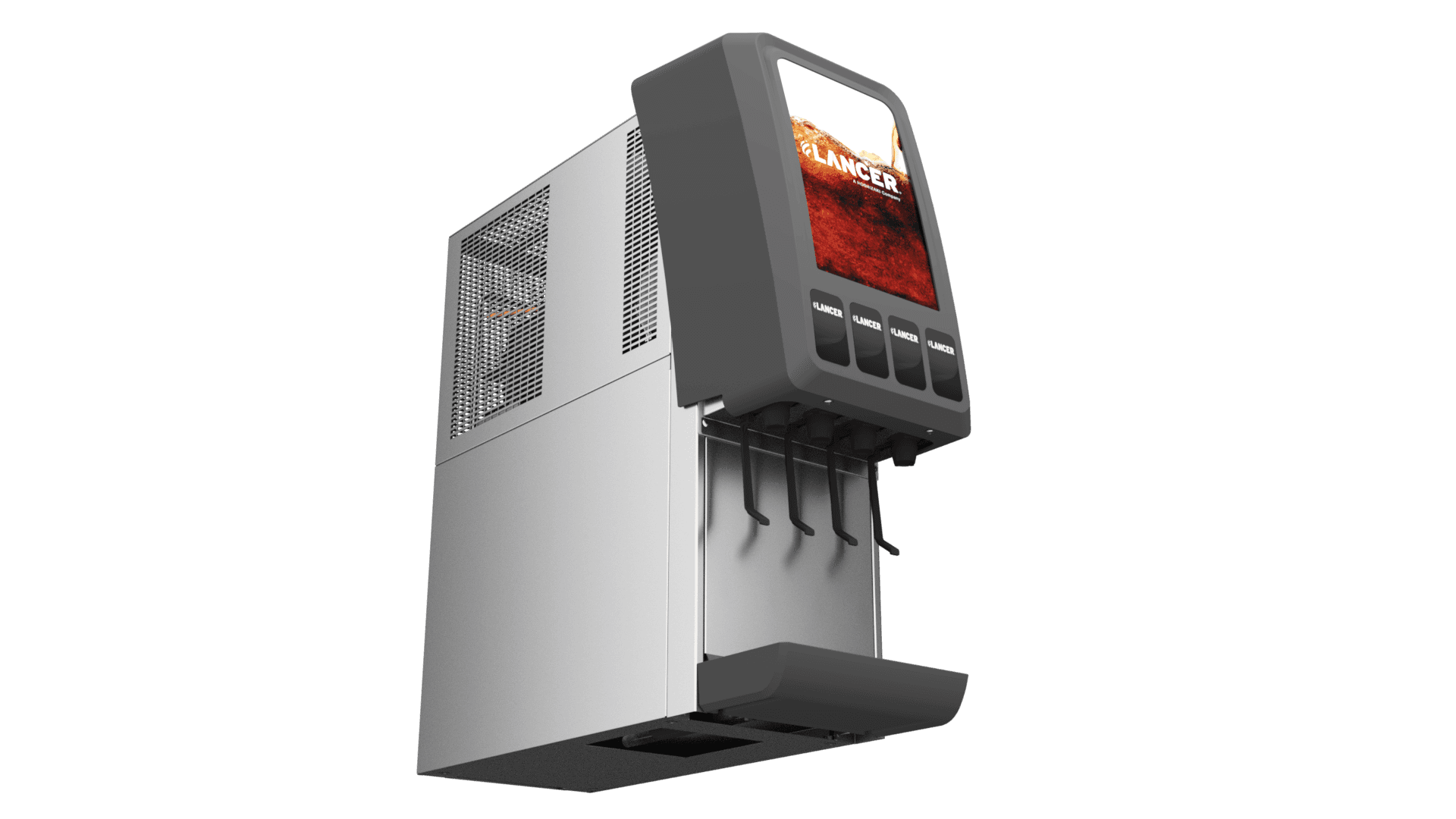

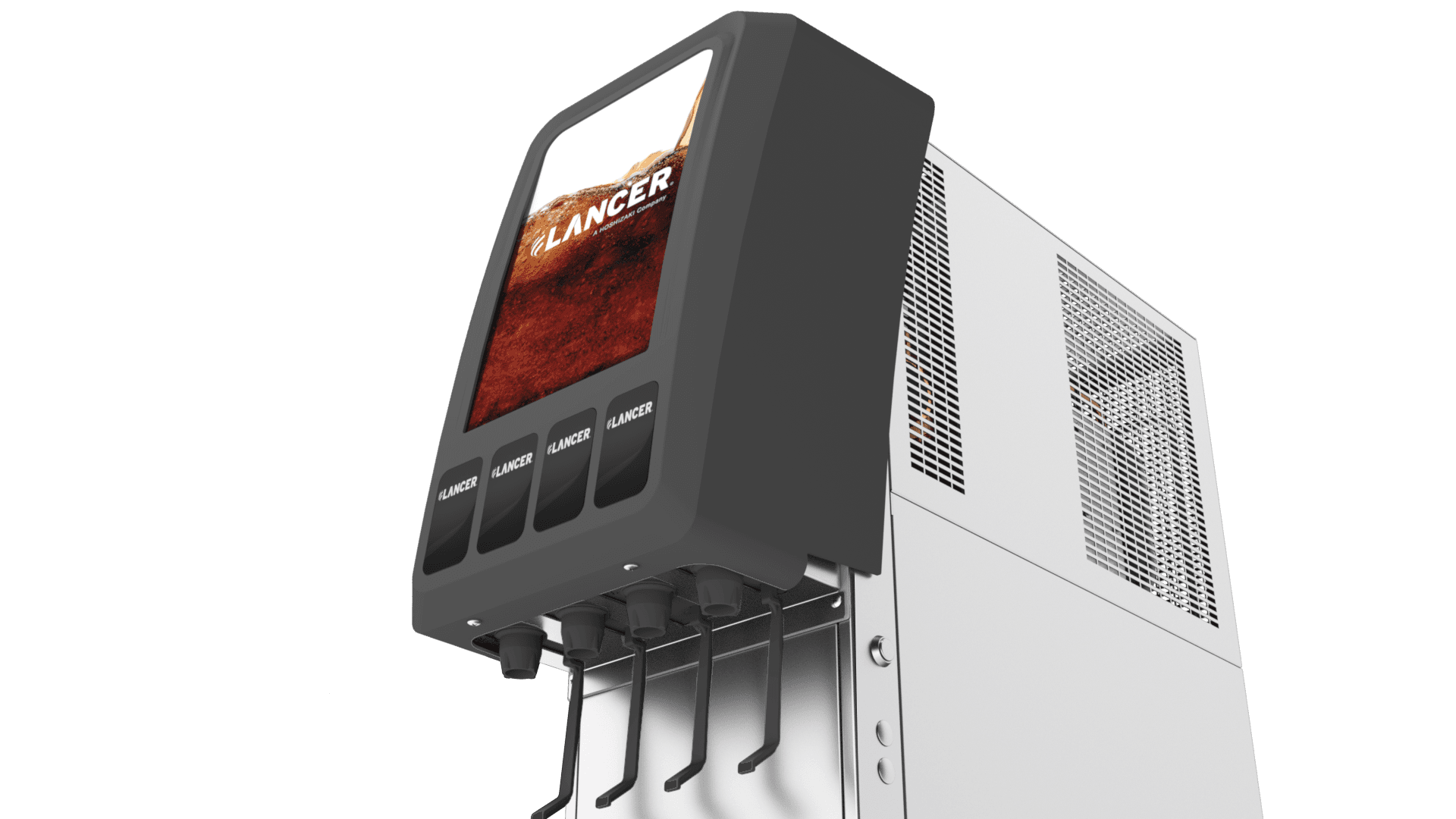

Counter Electric Dispenser

CED 400

The CED 400 is the world’s narrowest 2-4 valve dispenser in its class. Boasting the latest technology for energy savings and sustainability, and the flexibility to offer carbonated and non-carbonated beverages, the CED 400 is your solution to delivering what your customer wants.

Request A Quote

Equipment Warranty

Energy‑Efficient Refrigeration

Featuring R290 refrigerant and reduced energy consumption technology, the CED 400 supports sustainable, cost‑efficient operation. Its removable refrigeration deck and stainless steel construction simplify servicing and improve long‑term durability.

Narrow Footprint with High Performance

Ideal for tight counter spaces. Despite its small size, it delivers strong performance with flexible 2, 3, and 4 valve configurations and consistent cold carbonation.

Specifications
Specifications

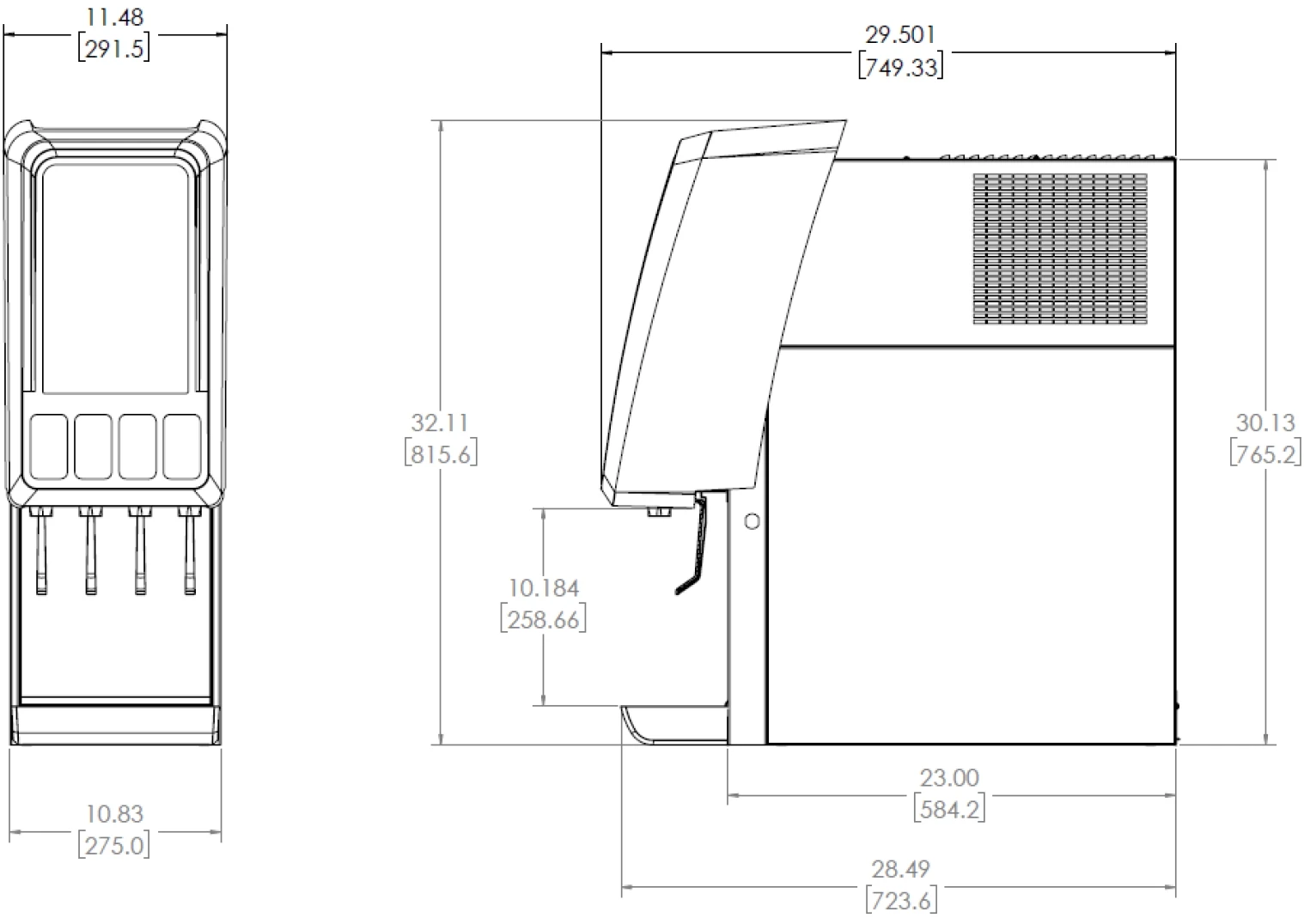

Dimensions
Width: 10.83 in (275 mm)
Depth: 29.75 in (756 mm)
Height: 32.60 in (828 mm)

Weight
Shipping: 165 lb (74.8 kg)
Empty: 127 lb (57.6 kg)
Operating: 174 lb (78.9 kg)
Ice Bath: 47 lb (21.3 kg)

Electrical
115 VAC, 60 Hz, 9.5 Amps
220-240 VAC, 50 Hz, 6.0 Amps
220-240 VAC, 60 Hz, 6.0 Amps

Ice Bank
Capacity: 14 lb (6.4 kg)

1/3 hp Compressor
285W (115V/60Hz)
450W (220V/50Hz)
400W (220V/60Hz)

Fittings
Water for Carb Inlet: 3/8 in. (19 mm) barb
Plain Water Inlet: 3/8 in. (19 mm) barb
Brand Syrup Inlets: 1/4 in. (12.7 mm) barb
CO2 Inlet: 1/4 in. (12.7 mm) barb

Features
Features

› Narrow width - 10.8” (275 mm)

› R290 Refrigerant

› Reduced energy consumption

› Available with 2, 3, & 4 LPV valves

› Consistent internal cold carbonation

› Removable refrigeration deck for ease of service

› Stainless steel construction

› Lancer Electronic Ice Bank Control

› 1/3 hp compressor

Specifications
Specifications

Dimensions
Width: 10.83 in (275 mm)
Depth: 29.75 in (756 mm)
Height: 32.60 in (828 mm)

Weight
Shipping: 165 lb (74.8 kg)
Empty: 127 lb (57.6 kg)
Operating: 174 lb (78.9 kg)
Ice Bath: 47 lb (21.3 kg)

Electrical
115 VAC, 60 Hz, 9.5 Amps
220-240 VAC, 50 Hz, 6.0 Amps
220-240 VAC, 60 Hz, 6.0 Amps

Ice Bank
Capacity: 14 lb (6.4 kg)

1/3 hp Compressor
285W (115V/60Hz)
450W (220V/50Hz)
400W (220V/60Hz)

Fittings
Water for Carb Inlet: 3/8 in. (19 mm) barb
Plain Water Inlet: 3/8 in. (19 mm) barb
Brand Syrup Inlets: 1/4 in. (12.7 mm) barb
CO2 Inlet: 1/4 in. (12.7 mm) barb

Features
Features

› Narrow width - 10.8” (275 mm)

› R290 Refrigerant

› Reduced energy consumption

› Available with 2, 3, & 4 LPV valves

› Consistent internal cold carbonation

› Removable refrigeration deck for ease of service

› Stainless steel construction

› Lancer Electronic Ice Bank Control

› 1/3 hp compressor
