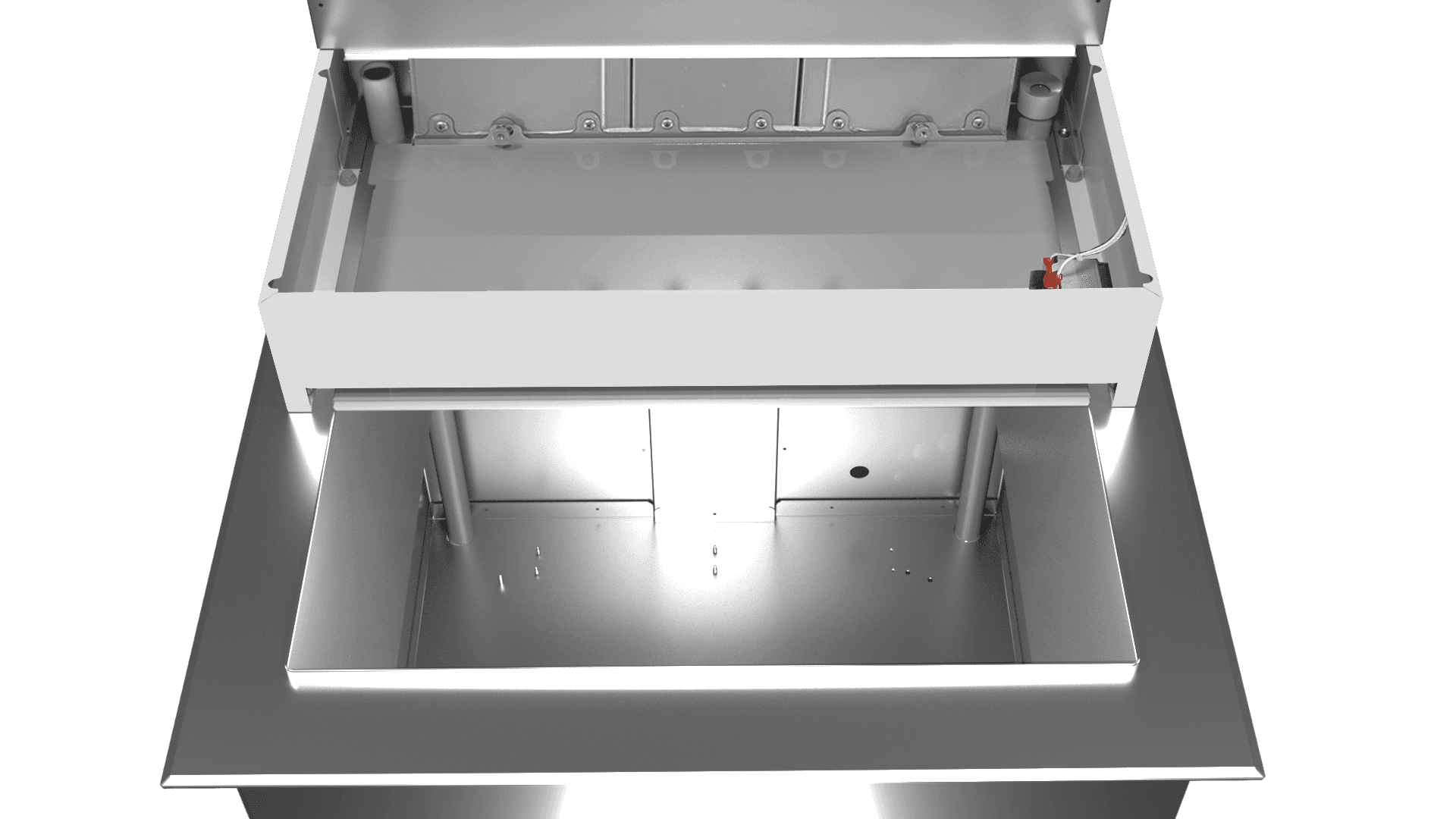

Reliable & Hygienic Design
Lancer Worldwide’s Ice Cooled Drop-In features an ice bin design that maximizes accessibility and guarantee beverage quality. The cold plate maintains consistently cold beverage temperatures and the ice bin switch ensures the dispenser is disabled as long as the lid is open. This streamlined, service-friendly layout supports reliability, hygiene, and ease of maintenance.

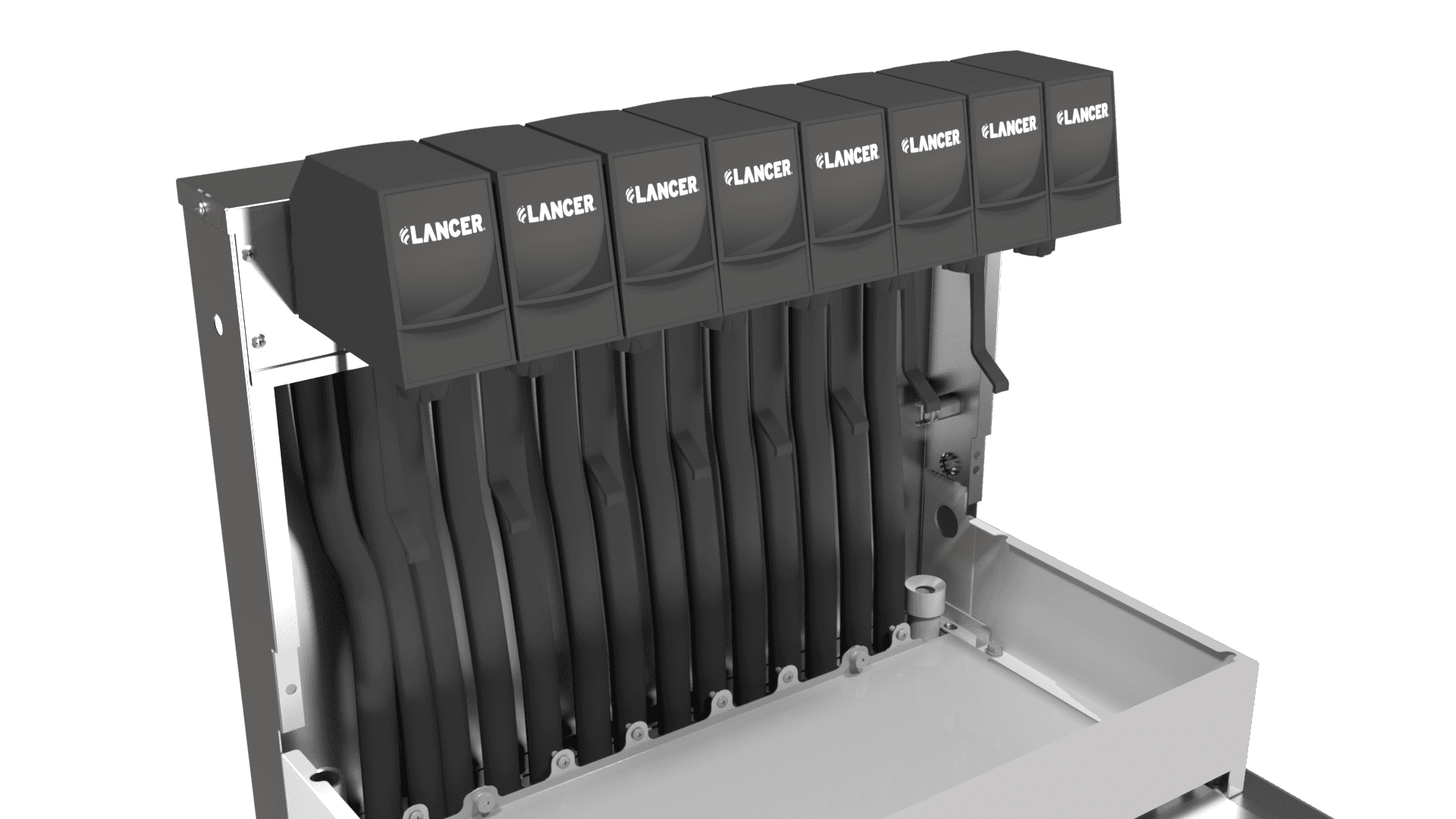

Consistent Beverage Temperatures
Lancer Worldwide’s Ice Cooled Drop-In features fully insulated product lines that run directly to each dispensing valve, helping maintain consistent beverage temperatures all the way to the point of pour. The streamlined routing keeps lines protected and efficiently organized, reducing thermal gain and supporting optimal drink quality.
Specifications
Specifications
Dimensions
Width: 25.2 in (640 mm)
Depth: 25.2 in (640 mm)
Height: 42.4 in (1077 mm)
Weight
6 & 8 valve:
Shipping: 230 lb (104 kg)
Operating (with Ice): 273 lb (124 kg)
Ice Capacity: 100 lb (45 kg)
10 valve:
Shipping: 255 lb (116 kg)
Operating (with Ice): 304 lb (138 kg)
Ice Capacity: 100 lb (45 kg)
Electrical
Dispenser: 24 VAC, 60 Hz
Power Supply Input: 115 VAC
Features
Features
› Front plumbing inlets
› Improved easy serviceability/cleanability
› 100% carbonation and plain water flexibility
› Stainless steel hard plumbed towers
› Easy to use switch over fitting
› LEV® valves standard, other valves available upon request
› Key lock switch
